Ground Support Truss System – 9x7m (30ft x 23ft-height)
RY-GSTS-97-3023
Ground Support Truss System – 9x7m (30ft x 23ft-height)
Quantity:
Product Name: Reichy RY-GSTS-97-3023 Ground Support Truss System – 9x7m (30ft x 23ft) with Lifting Towers & OutriggersOverviewWhen you're putting together a live event, the last thing you want to worry about is whether your rigging can handle the load. The Reichy Ground Support Truss System gives you one less thing to stress over. This 9x7-meter (30x23-foot) staging solution is built for production companies, rental houses, and venues that need reliable, repeatable results show after show.Whether you're flying LED walls, moving heads, line arrays, or a combination of all three, this system provides the stable foundation you need. It's designed to work indoors or outdoors, and it handles the demands of touring and installation work with equal ease.Built for the Real WorldThis isn't a system that looks good only on paper. The RY-GSTS-97-3023 starts with high-grade EN-AWT6 6061 aluminum—the same material trusted in professional staging around the world. It's strong, corrosion-resistant, and holds up to repeated use without showing signs of wear.The modular ground support towers work with an integrated lifting system, so you can dial in your height quickly and precisely. Once it's up, it stays up. The outriggers add stability, and the steel base plates give you a solid footprint on any surface, whether you're setting up on grass, asphalt, or concrete.Truss That Fits Together – Every TimeAnyone who's spent time on a build knows the frustration of sections that don't line up. That's not an issue here. The 290x290mm square spigot truss uses a standard conical connector system that's compatible with other major brands using the same connection type. More importantly, every piece fits the way it should. Our quality control process catches dimensional issues before they reach your job site, so your crew spends less time wrestling with misaligned parts and more time getting the show ready.Total load capacity comes in at 1,400 kilograms (3,086 pounds), which gives you plenty of headroom for modern video walls and lighting packages.SpecificationsModel: RY-GSTS-97-3023
System Size: 9m (L) x 7m (H) – 30ft x 23ft
Truss Type: 290x290mm square spigot truss
Main Tube: 50x3mm
Vice Tube: 25x2mm
Brace Tube: 25x2mm
Material: EN-AWT6 6061 Aluminum
Connection System: Standard conical connector
Total Load Capacity: 1,400 kg / 3,086 lbs
Base Plates: 750x750mm (60x60x3mm, steel)
Outrigger Stabilizers: Aluminum leg supports – lower length: 1m, upper length: 1.6m

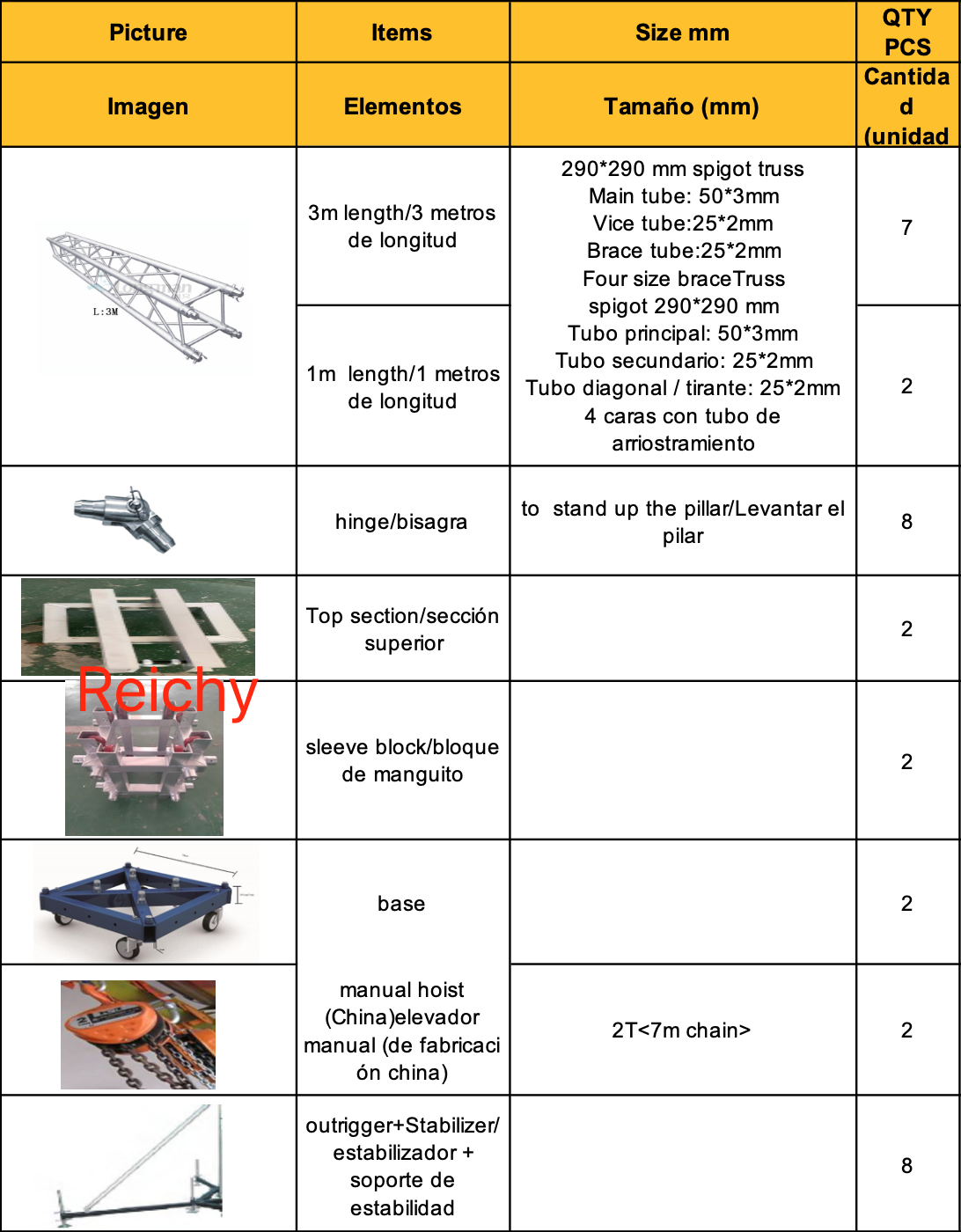

Best For: Indoor and outdoor events, concerts, festivals, permanent installationsMore Than Just a Truss SystemWhen you choose Reichy, you're not just buying aluminum tubes and connectors. You're getting a complete support solution that includes the ground support towers, lifting system, base plates, outriggers, and all necessary hardware. Need custom dimensions? We build to spec. Looking for corners or accessories to expand your design options? We've got those too.Every system leaves our Guangzhou facility with the same commitment to quality that's kept us in business for nearly two decades.Get in TouchIf you're planning your next event and need a ground support system you can count on, we'd like to hear from you. Send us a message with your requirements, and we'll get back to you with pricing and availability.Reichy – Built Strong. Built Safe. Built to Last.The complete system includes the following product list:
