spigot square truss 450
CS450-4
Main Tube：Ø50*3.0mm Vice Tube：Ø50*3.0mm Brace Tube：Ø25*2.0mm
Quantity:

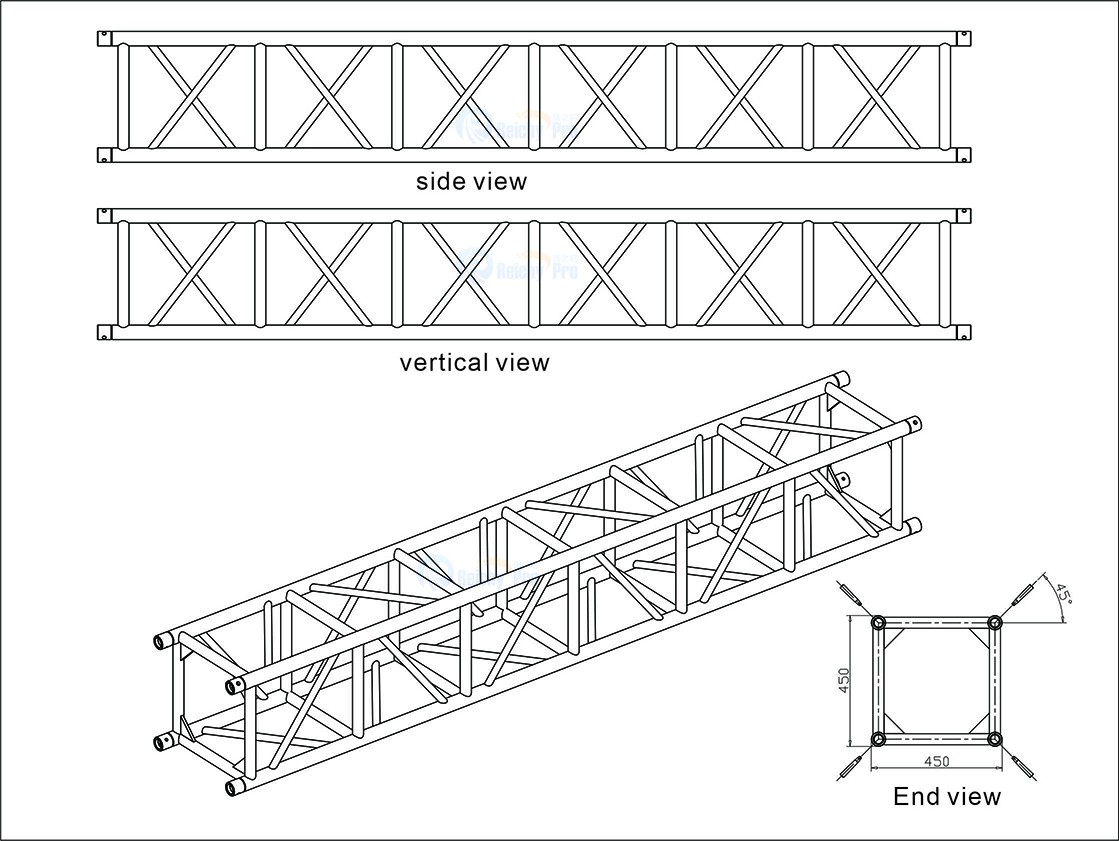

light truss CS450-4 450*450mm
| CS450-4 | ||||||||
| Main Tube：Ø50*3.0mm Vice Tube：Ø50*3.0mm Brace Tube：Ø25*2.0mm | ||||||||
| 450*450 | ||||||||

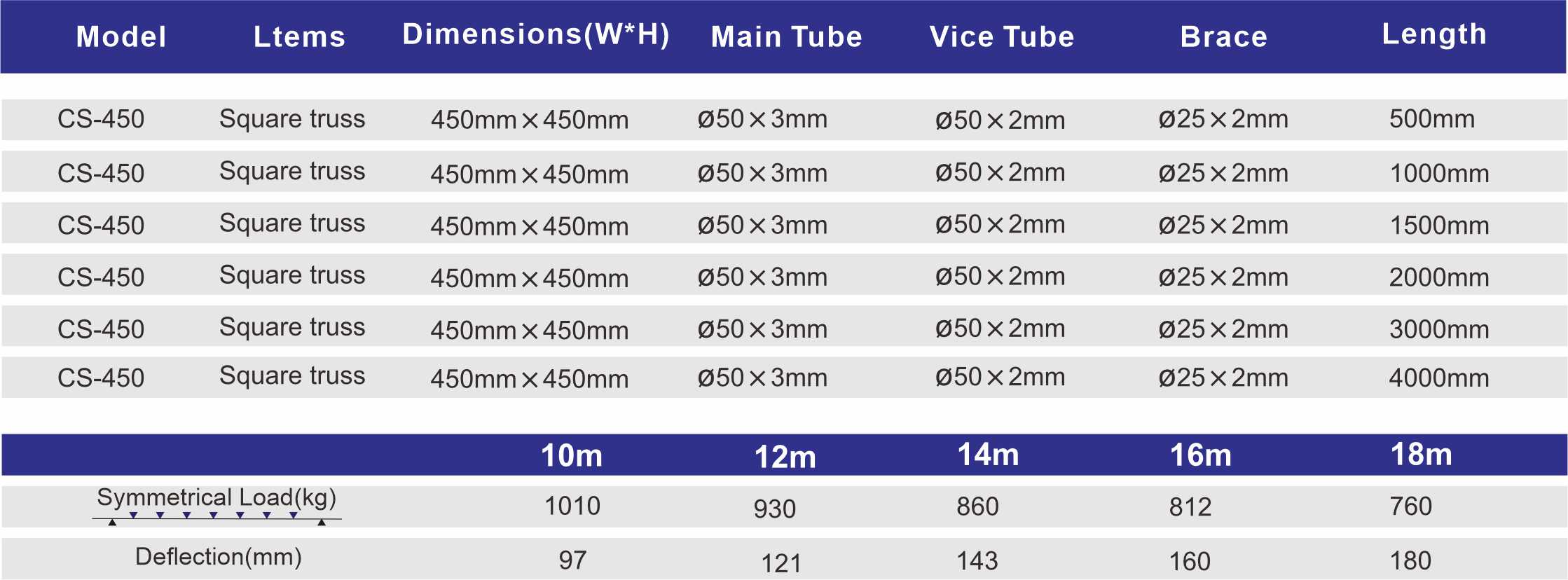

| Span（M） | 6m | 8m | 10m | 12m | 14m | 16m | 18m | 20m |
| Centre Point Load（KG） | 1610 | 1200 | 912 | 764 | 636 | 521 | 428 | 330 |
| Deflection（mm） | 22 | 40 | 69 | 94 | 123 | 166 | 194 | 210 |
| Distributed Load（KG/M） | 422 | 241 | 147 | 105 | 72 | 55 | 40 | 33 |
| Deflection（mm） | 16 | 27 | 49 | 73 | 100 | 134 | 167 | 199 |
| 1. Material: International Industrial Aluminum 6082-T6 | ||||||||
| 2. Aluminum Tube Features: Elongation > 8, Yield Strength >260, Tensile Strength>310 | ||||||||
lighting truss light trusses
Illuminate your spaces with elegance and precision using our Light TrussesandLighting Truss systems. Our Light Trusses are designed to support your lighting fixtures with strength and versatility, creating stunning visual effects. As a trusted manufacturer, we offer a range of Lighting Truss solutions tailored to your needs. Experience the difference with our Light Trusses and elevate your events to new heights.
