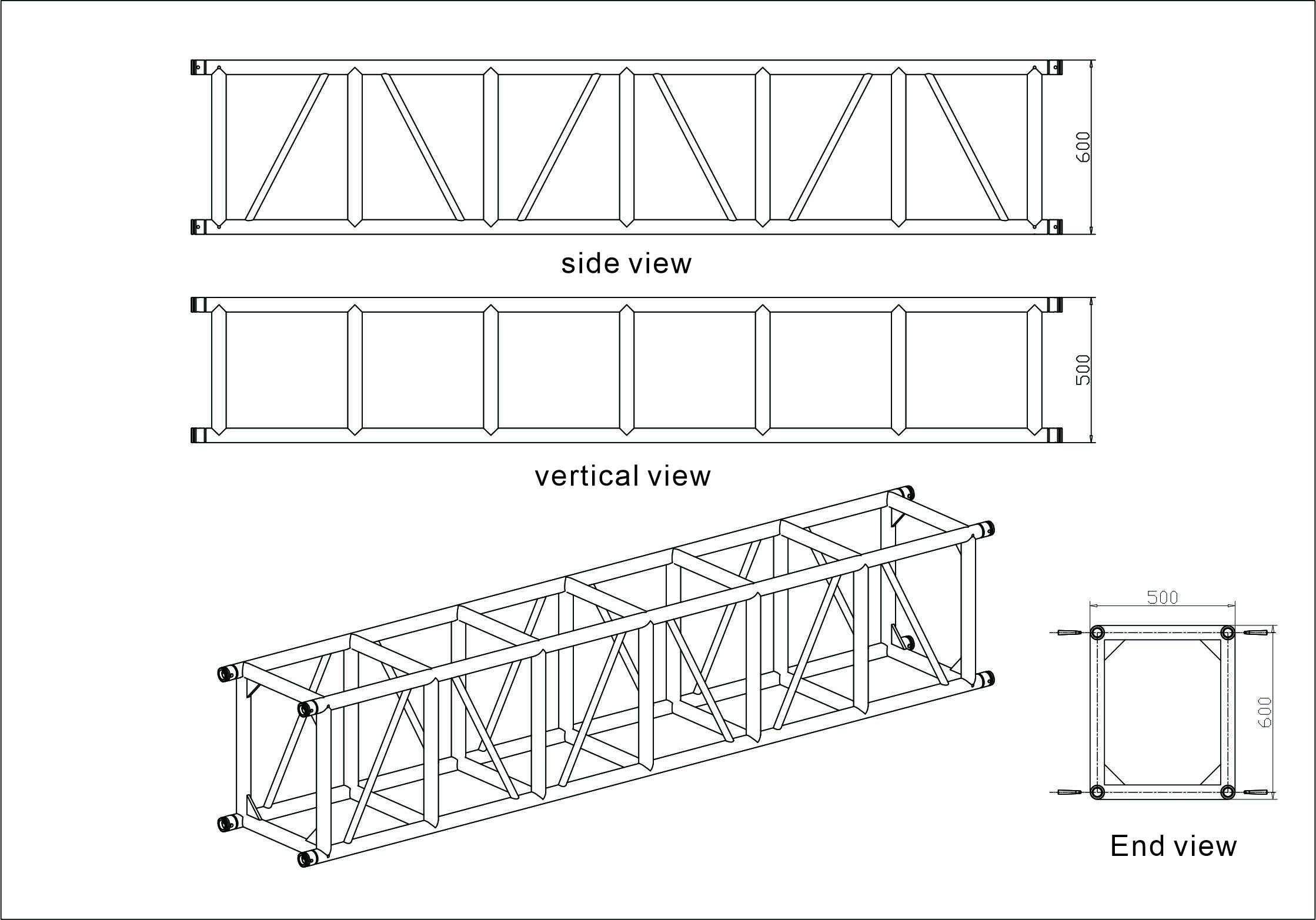

spigot square truss 5060
CS5060-4
CS5060-4
Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø30*2.0mm
Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø30*2.0mm
Quantity:
light stage ,Stage equipment ,Stage system

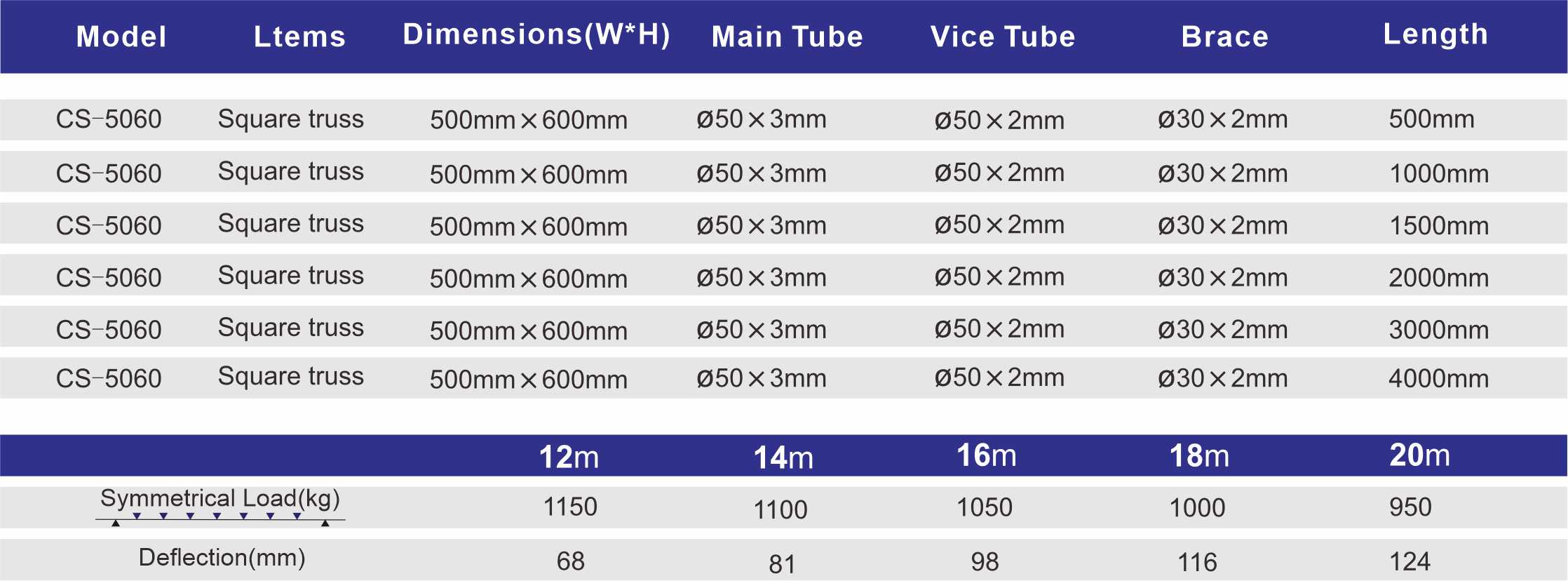

| CS5060-4 | ||||||||
| Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø30*2.0mm | ||||||||
| Stage equipment | ||||||||
| 500*600 | ||||||||
| Span（M） | 8m | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
| Centre Point Load（KG） | 1560 | 1139 | 1005 | 840 | 718 | 530 | 452 | 423 |
| Deflection（mm） | 30 | 46 | 65 | 90 | 114 | 140 | 168 | 211 |
| Distributed Load（KG/M） | 382 | 243 | 164 | 87 | 78 | 66 | 52 | 41 |
| Deflection（mm） | 18 | 32 | 57 | 93 | 125 | 151 | 178 | 197 |
| 1. Material: International Industrial Aluminum 6082-T6 | ||||||||
| 2. Aluminum Tube Features: Elongation > 8, Yield Strength >260, Tensile Strength>310 | ||||||||
A light stage is essential for enhancing the visual experience of any performance, providing the perfect ambiance for artists and audiences alike. Coupled with advanced stage
equipment, it allows for dynamic lighting effects that elevate productions, from concerts to theatrical performances. A comprehensive stage system integrates various
components, including sound, lighting, and rigging, to create a seamless environment for live events. This combination ensures that all technical aspects work harmoniously,
allowing performers to engage fully with their audience. Investing in high-quality light stages and stage equipment is crucial for event organizers aiming to deliver memorable
experiences. Together, these elements form the backbone of a successful stage system, ensuring both safety and aesthetic appeal.light stage ,Stage equipment ,Stage system
