spigot square truss 4060
CS4060-4
CS4060-4
Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm
Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm
Quantity:
light stage ,Stage equipment ,Stage system;light stage ,Stage equipment ,Stage system

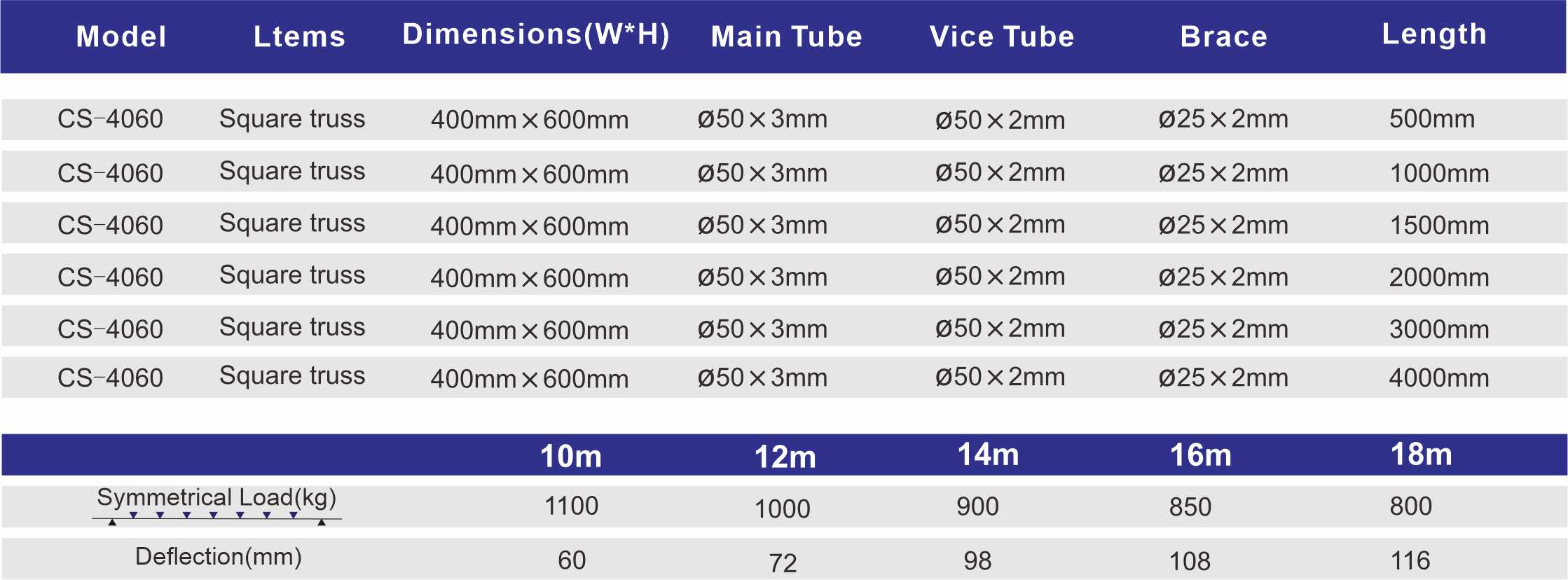

| CS4060-4 | ||||||||
| Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm | ||||||||

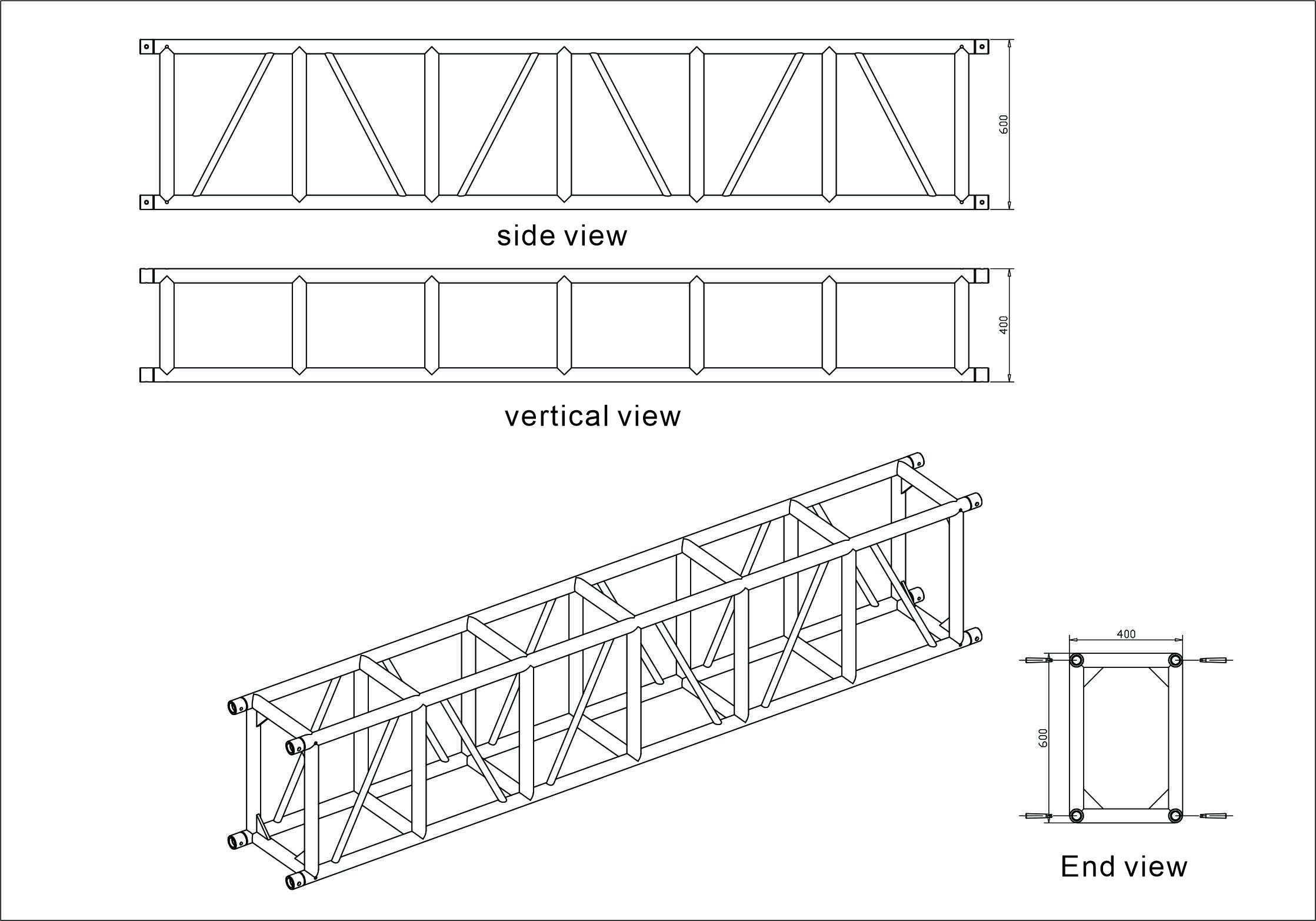

| 400*600 | ||||||||
| Span（M） | 8m | 10m | 12m | 14m | 16m | 18m | 20m | 22m |
| Centre Point Load（KG） | 1360 | 1066 | 860 | 733 | 626 | 520 | 452 | 391 |
| Deflection（mm） | 25 | 42 | 66 | 90 | 115 | 142 | 165 | 213 |
| Distributed Load（KG/M） | 342 | 216 | 144 | 103 | 78 | 58 | 46 | 36 |
| Deflection（mm） | 17 | 36 | 59 | 90 | 123 | 157 | 186 | 200 |
| 1. Material: International Industrial Aluminum 6082-T6 | ||||||||
| 2. Aluminum Tube Features: Elongation > 8, Yield Strength >260, Tensile Strength>310 | ||||||||
A light stage is essential for creating dynamic and engaging performances. With advanced stage equipment, such as high-quality lighting and sound systems,
the overall experience can be significantly enhanced. The integration of a robust stage system ensures that every component works seamlessly together, allowing
for smooth transitions and creative setups. Whether you’re organizing a concert, theater production, or corporate event, investing in a well-designed light stage
and reliable stage equipment is crucial. These elements not only improve aesthetics but also enhance the safety and functionality of the performance space.
Ultimately, a solid stage system creates the foundation for unforgettable events that leave a lasting impression on audiences.light stage ,Stage equipment ,Stage system
