spigot square truss 5276
CS5276-4
CS5276-4
Main Tube：Ø50*3.0mm Vice Tube：Ø50*3.0mm Brace Tube：Ø30*2.0mm
Main Tube：Ø50*3.0mm Vice Tube：Ø50*3.0mm Brace Tube：Ø30*2.0mm
Quantity:
stage trussing factory,Square truss,spigot truss
| CS5276-4 stage trussing factory | |||||||||
| Main Tube：Ø50*3.0mm Vice Tube：Ø50*3.0mm Brace Tube：Ø30*2.0mm | |||||||||
| stage trussing factory | |||||||||

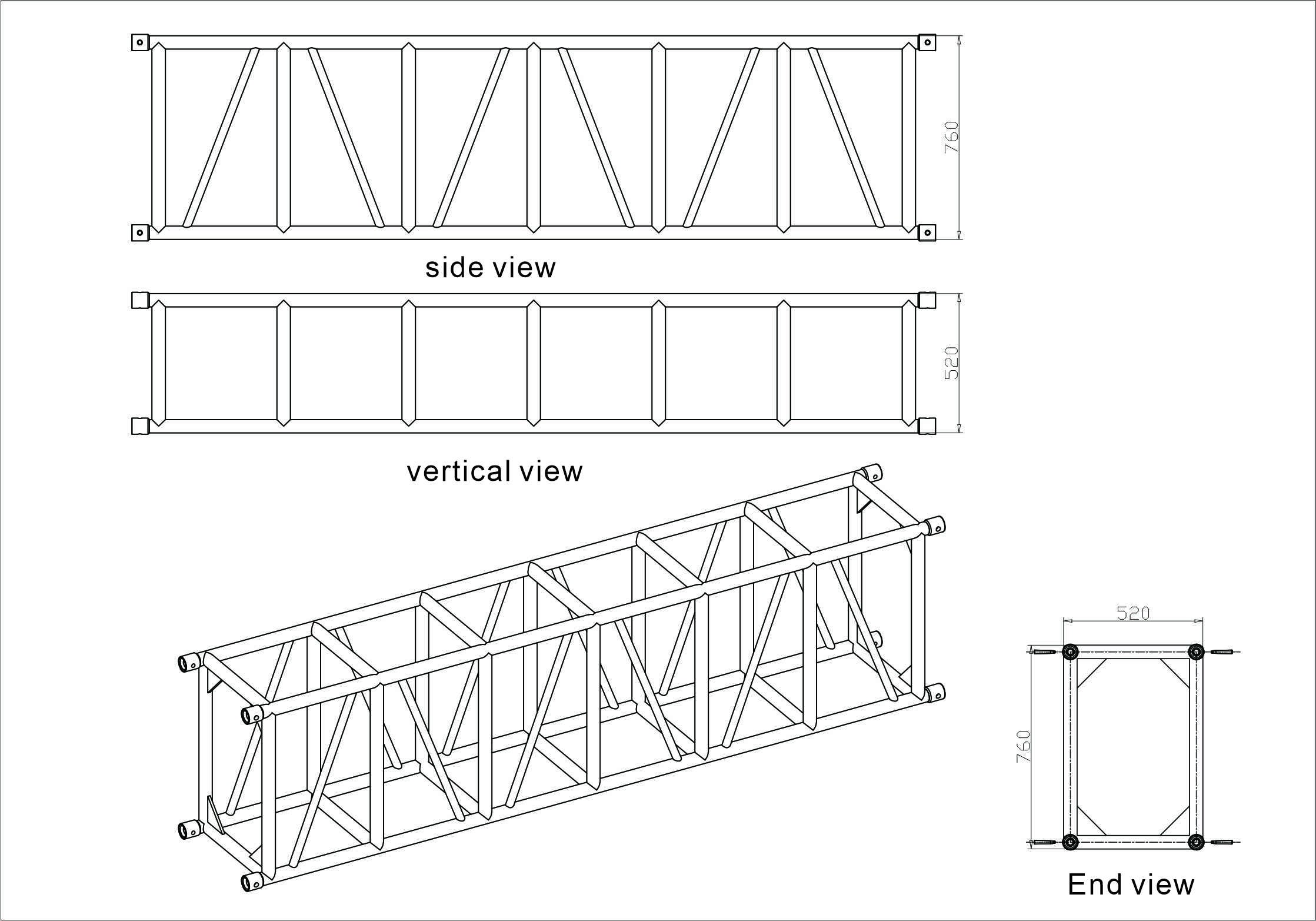

| 520*760 | |||||||||

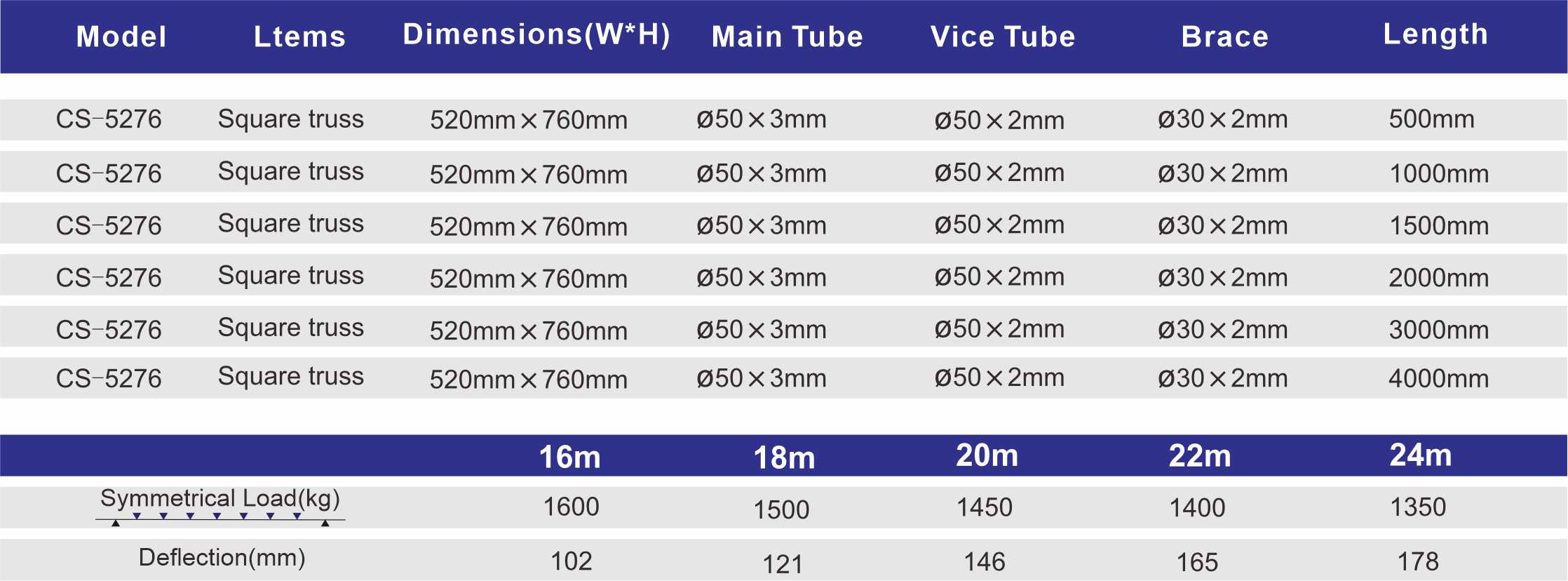

| Span（M） | 8m | 10m | 12m | 14m | 16m | 18m | 20m | 22m | 24m |
| Centre Point Load（KG） | 2347 | 1850 | 1510 | 1265 | 1076 | 925 | 800 | 712 | 623 |
| Deflection（mm） | 25 | 40 | 61 | 82 | 107 | 134 | 165 | 202 | 233 |
| Distributed Load（KG/M） | 487 | 307 | 212 | 150 | 112 | 85 | 67 | 53 | 42 |
| Deflection（mm） | 20 | 32 | 48 | 67 | 89 | 102 | 134 | 158 | 195 |
| 1. Material: International Industrial Aluminum 6082-T6 | |||||||||
| 2. Aluminum Tube Features: Elongation > 8, Yield Strength >260, Tensile Strength>310 | |||||||||
A stage trussing factory specializes in manufacturing high-quality truss systems essential for various events and productions. Among their popular products is
the square truss, known for its strength and versatility. This type of truss provides stable support for lighting and sound equipment, ensuring a safe environment
for performances. Additionally, spigot truss systems are also produced in these factories, offering quick assembly and disassembly for easy transport and setup.
By combining square truss and spigot truss designs, event organizers can create robust and adaptable structures that meet diverse needs. Overall, a stage
trussing factory plays a vital role in the event industry, providing essential components for successful productions.
