spigot square truss 100

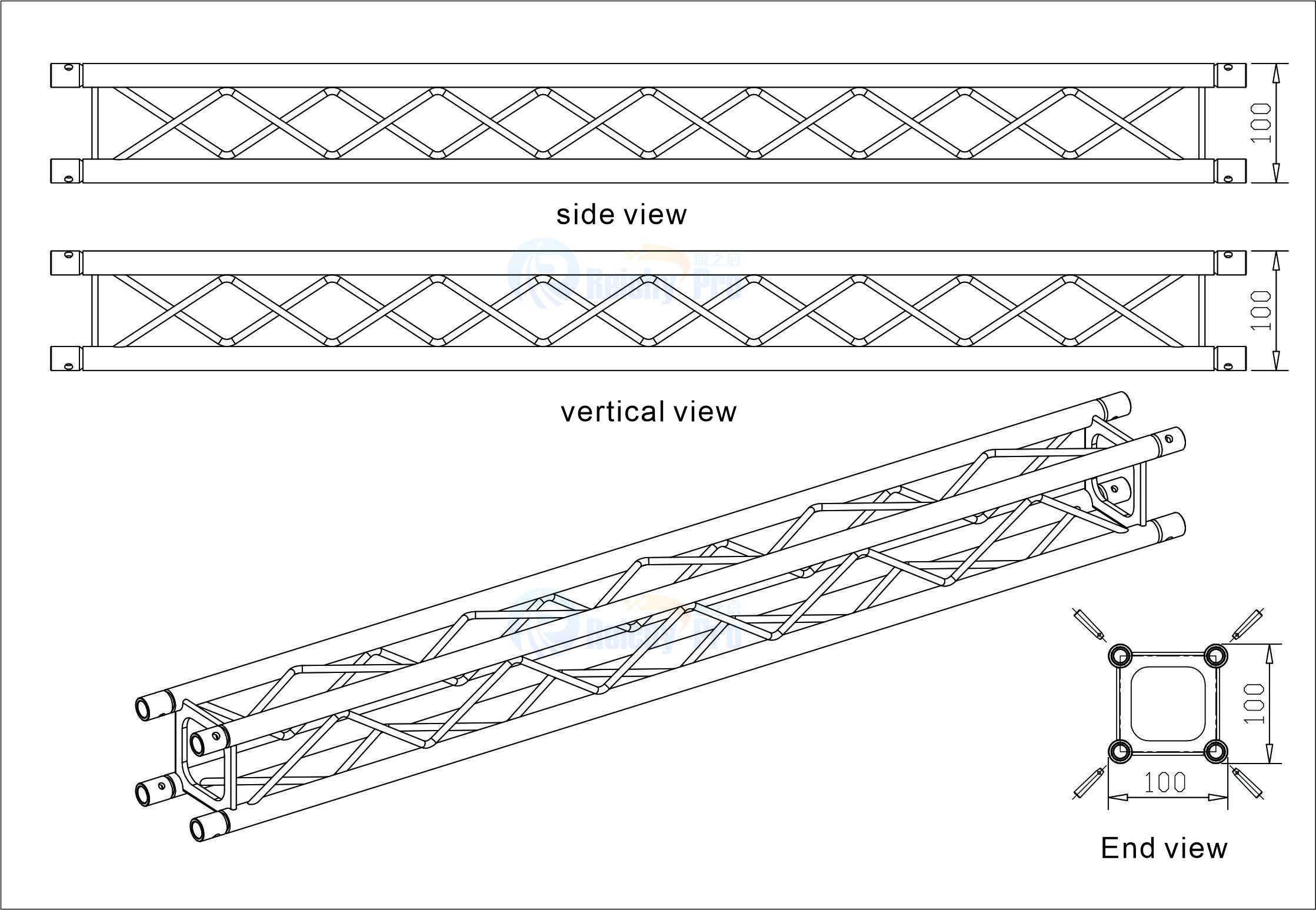

CS100-4
CS100-4
Main Tube：Ø20*2.0t End Point Aluminum Plate：6.0 铝板 Brace Tube：Ø6 Full
Main Tube：Ø20*2.0t End Point Aluminum Plate：6.0 铝板 Brace Tube：Ø6 Full
Quantity:
spigot truss,Global truss,100mm truss
| CS100-4 Main Tube：Ø20*2.0t End Point Aluminum Plate：6.0铝板 Brace Tube：Ø6 Full | ||||||

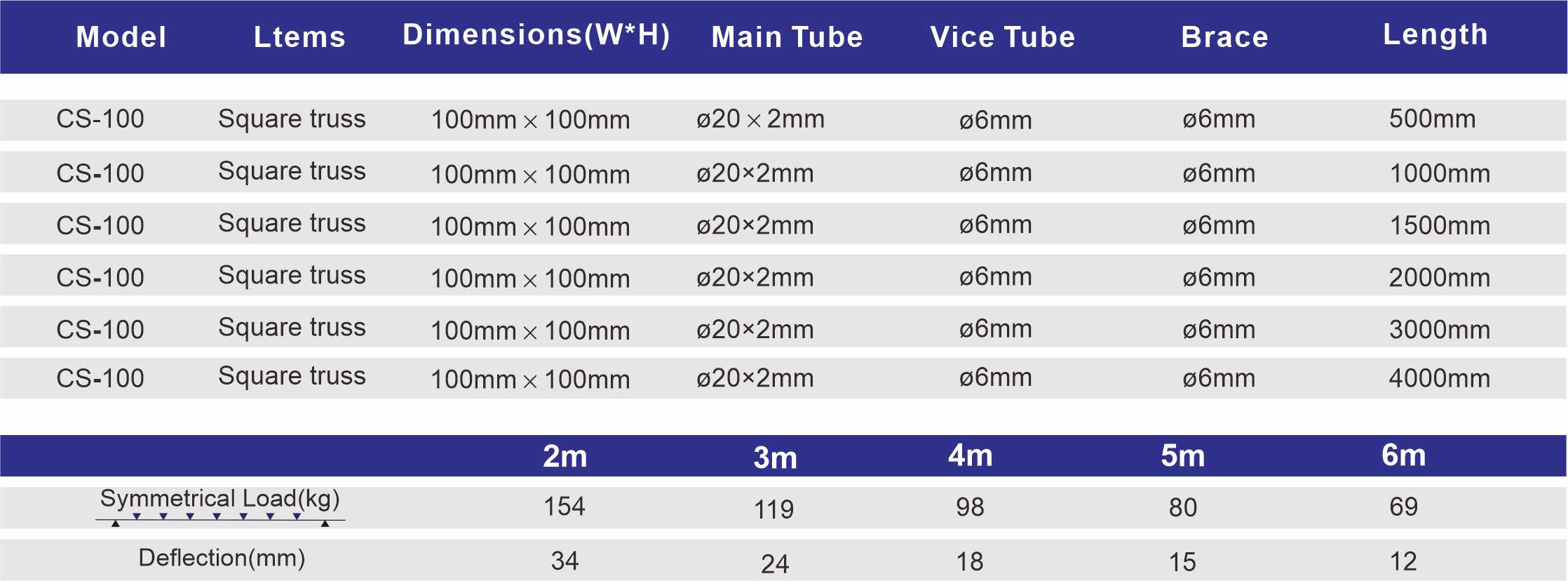

| Specification | ||||||
| Size | 0.5m ; 1m ; 1.5m ; 2m | |||||
| Span（M） | 1 | 2 | 3 | 4 | 5 | 6 |
| CPL (KG) | 168 | 154 | 119 | 98 | 80 | 69 |
| UDL (KG/M) | 48 | 34 | 24 | 18 | 15 | 12 |
| Deflection (mm) | - | - | - | - | - | - |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety. | ||||||
Spigot truss is a highly efficient solution for creating robust staging and rigging setups, making it a favorite among event professionals. The Global truss brand is
particularly renowned for its quality and versatility, catering to a wide range of applications from concerts to exhibitions. Among its offerings, the 100mm truss stands
out for its lightweight yet strong design, which allows for easy transport and quick assembly. This size is ideal for smaller venues or events requiring compact solutions
without compromising on stability. By utilizing spigot truss in conjunction with Global truss and the 100mm truss, event organizers can achieve flexible and secure
structures that enhance both the visual appeal and safety of their productions, ensuring memorable experiences for all attendees.spigot truss,Global truss,100mm truss
