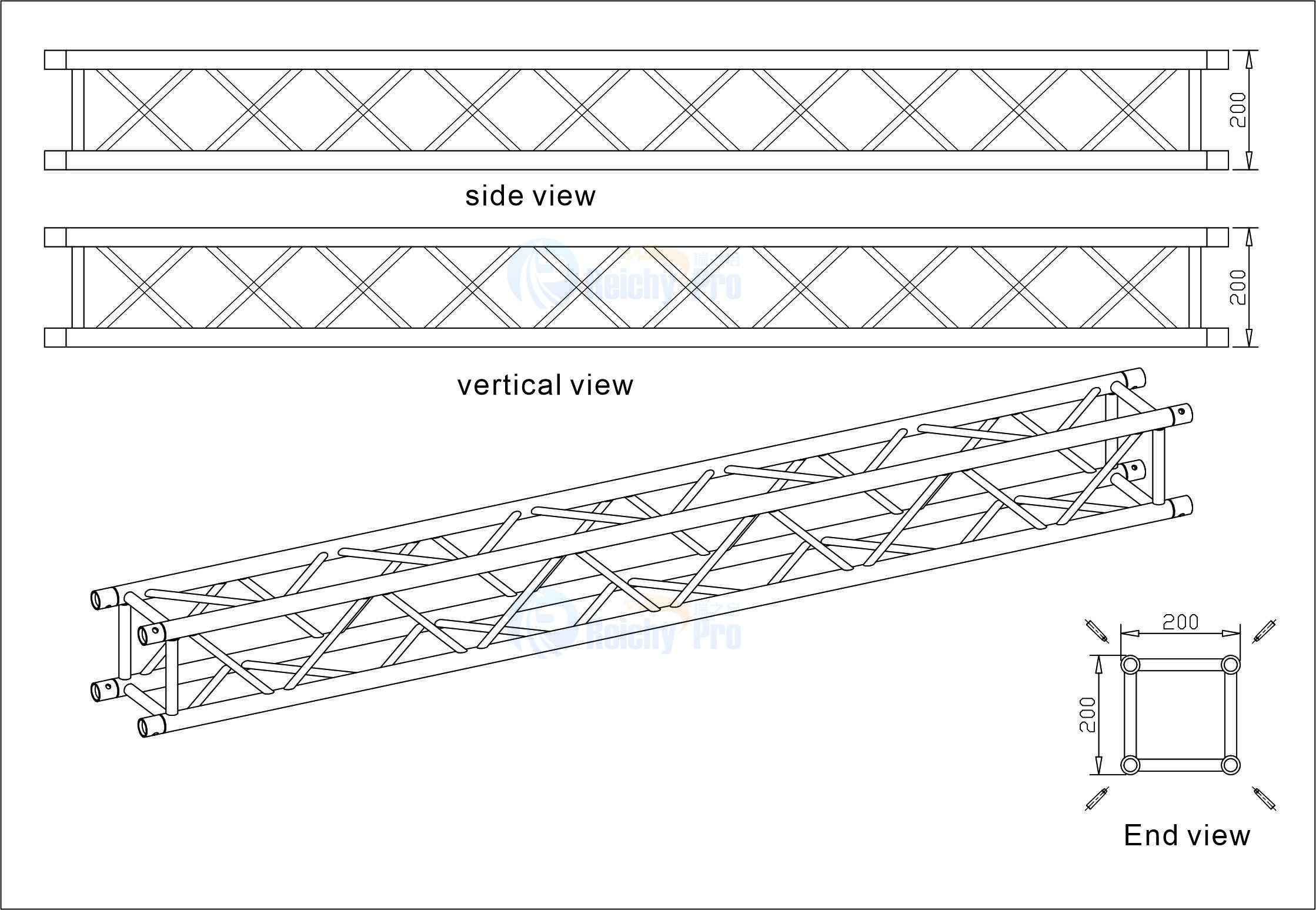

spigot square truss 200
CS200-4
CS200-4
Main Tube：Ø32*2.0t Brace Tube：Ø20*2.0t Vice Tube：Ø13*1.5t
Main Tube：Ø32*2.0t Brace Tube：Ø20*2.0t Vice Tube：Ø13*1.5t
Quantity:
spigot truss,Global truss,200mm truss;200mm truss

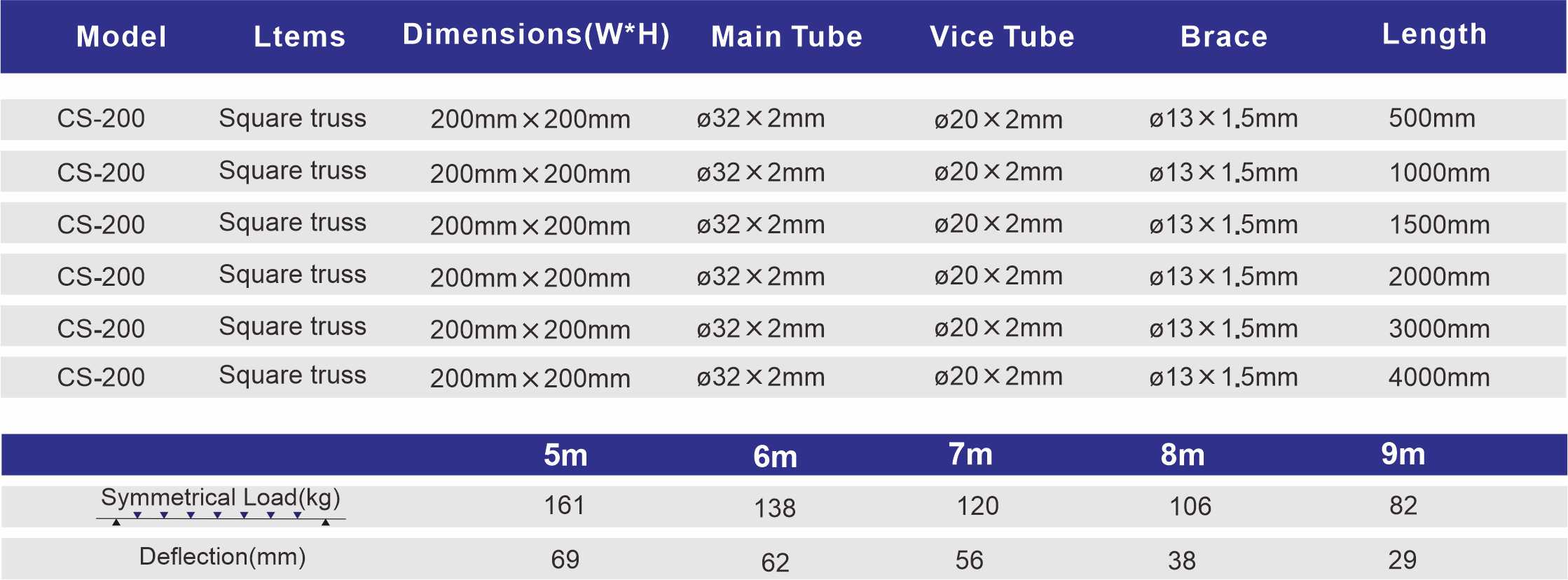

| CS200-4 Main Tube：Ø32*2.0t Brace Tube：Ø20*2.0t Vice Tube：Ø13*1.5t | ||||||||
| Specification | ||||||||
| Size | 0.5m ; 1m ; 1.5m ; 2m ; 2.5m ; 3m | |||||||
| Span（M） | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| CPL (KG) | 222 | 199 | 180 | 161 | 138 | 120 | 106 | 82 |
| UDL (KG/M) | 141 | 111 | 86 | 69 | 62 | 56 | 38 | 29 |
| Deflection (mm) | - | - | - | - | - | - | - | - |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety. | ||||||||
Spigot truss systems are essential for event staging, offering a reliable and versatile solution for supporting lighting and sound equipment. One of the most popular
options is the Global truss, known for its strength and ease of assembly. This type of truss is designed for various applications, from concerts to exhibitions. The 200mm
truss variant is particularly favored for its lightweight construction and compact design, allowing for efficient transportation and setup. Combining spigot truss with
Global truss and the 200mm truss provides event organizers with flexible configurations that can adapt to different venues. Overall, these truss systems ensure safety
and stability while enhancing the overall aesthetic of any event.spigot truss,Global truss,200mm truss
