spigot square truss CS300/400
CS300-3/CS400-3

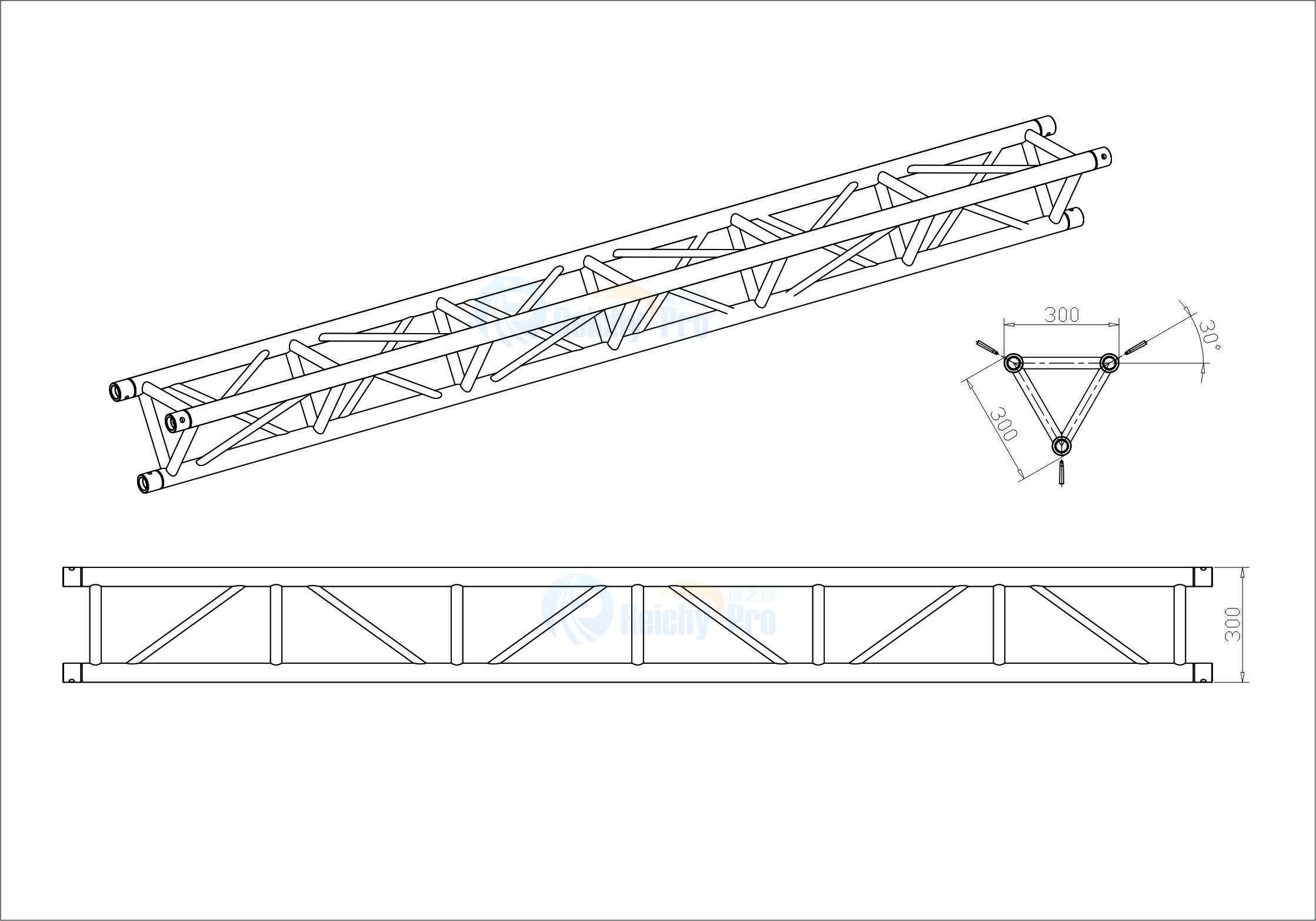

CS300-3
Main Tube：Ø50*3.0t Brace Tube：Ø25*2.0t Vice Tube：Ø20*2

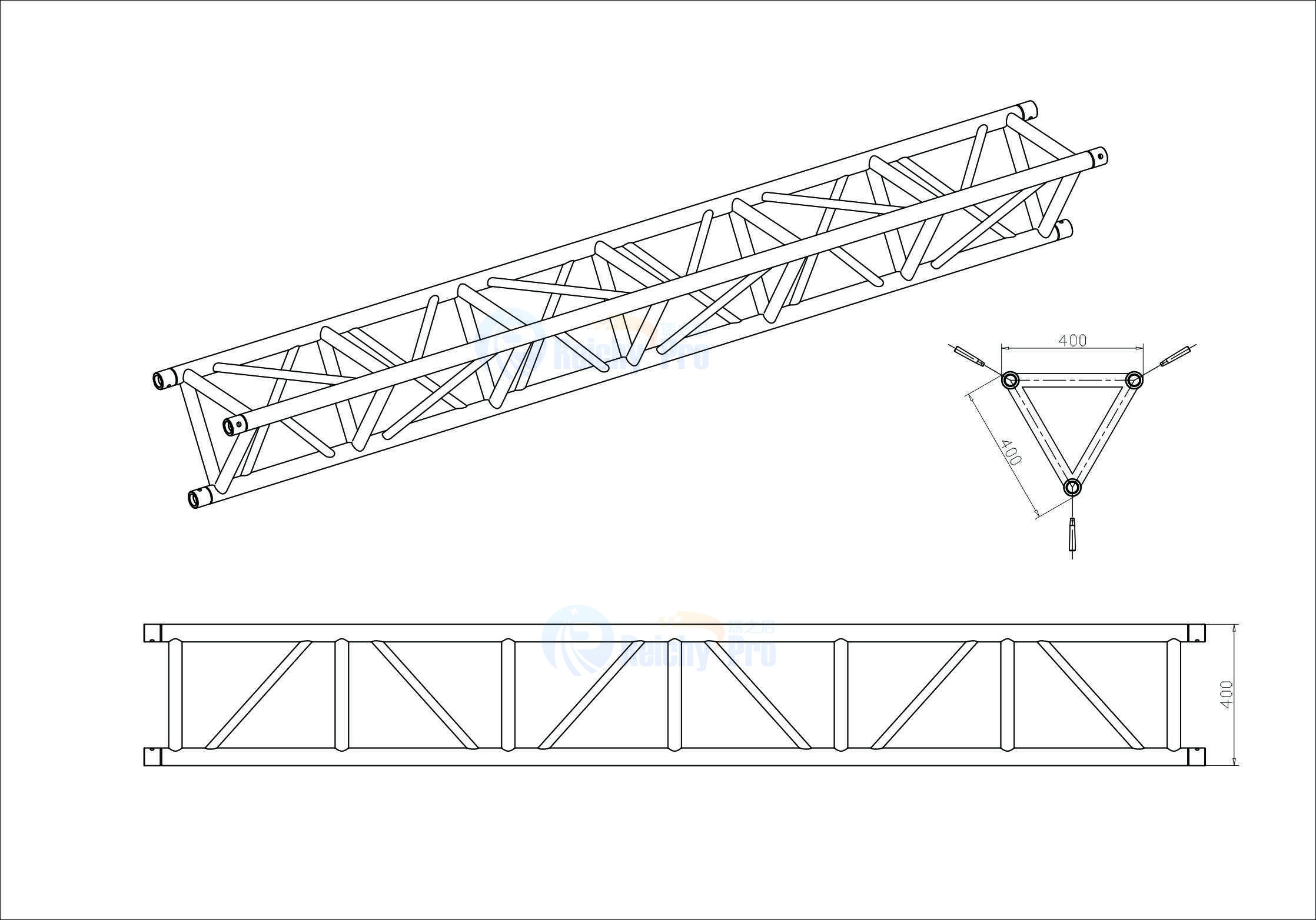

CS400-3
Main Tube：Ø50*3.0t Brace Tube：Ø32*2.0t Vice Tube：Ø25*2
Main Tube：Ø50*3.0t Brace Tube：Ø25*2.0t Vice Tube：Ø20*2
CS400-3
Main Tube：Ø50*3.0t Brace Tube：Ø32*2.0t Vice Tube：Ø25*2
Quantity:
Triangle truss,Truss with roof,spigot truss

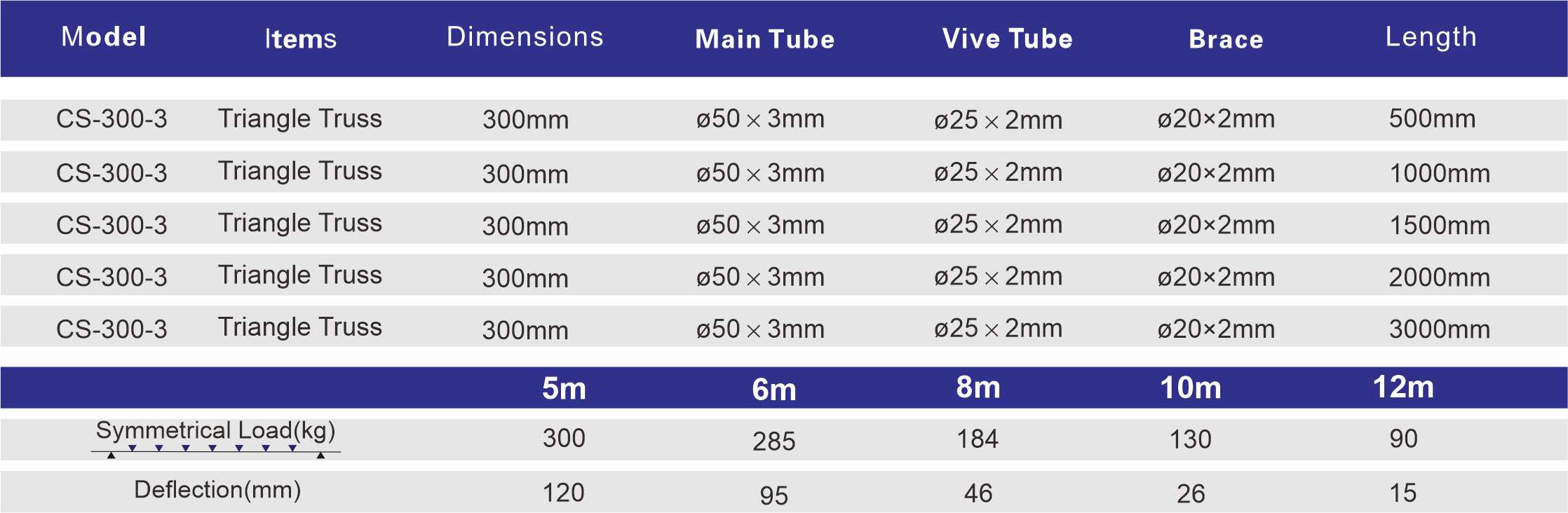

| CS300-3 Main Tube：Ø50*3.0t Brace Tube：Ø25*2.0t Vice Tube：Ø20*2 | |||||||||
| Specification | |||||||||
| Size | 0.5m;1m;1.5m;2m;2.5m;3m | ||||||||
| Span（M） | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| CPL (KG) | 364 | 300 | 285 | 249 | 184 | 144 | 130 | 116 | 90 |
| UDL (KG/M) | 182 | 120 | 95 | 71 | 46 | 32 | 26 | 21 | 15 |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety.Triangle truss,Truss with roof,spigot truss | |||||||||
| CS400-3 Main Tube：Ø50*3.0t Brace Tube：Ø32*2.0t Vice Tube：Ø25*2 | |||||||||
| Specification | |||||||||
| Size | 0.5m;1m;1.5m;2m;2.5;3m | ||||||||
| Span（M） | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 13 |
| CPL (KG) | 718 | 663 | 609 | 539 | 460 | 396 | 325 | 270 | 60 |
| UDL (KG/M) | 359 | 265 | 203 | 154 | 115 | 88 | 65 | 49 | 9 |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety.Triangle truss,Truss with roof,spigot truss | |||||||||
Triangle truss systems are essential for creating stable and visually appealing structures in various events. They offer strength and versatility, making them ideal for
supporting lighting and sound equipment. When combined with a truss with roof design, they provide additional protection from environmental elements, making them
perfect for outdoor events. Spigot truss systems enhance this versatility by allowing for quick assembly and disassembly, making setup and takedown efficient.
This combination of triangle truss, truss with roof, and spigot truss ensures that event organizers can create safe and reliable structures tailored to their specific needs.
Whether it’s a concert, festival, or corporate event, these truss solutions contribute to a seamless and professional production, ensuring
a memorable experience for attendees.Triangle truss,Truss with roof,spigot truss;Triangle truss,Truss with roof,spigot truss
