screw type square truss 300/400-3
CB300-3/CB400-3
CB400-3
Main Tube：Ø50*3.0t End Auxiliary Tube：50*25 Square tube deputy Tube：Ø32*2.0t Vice Tube：Ø25*2
CB300-3
Main Tube：Ø50*3.0t End Auxiliary Tube：50*25 Square tube deputy Tube：Ø25*2.0t Vice Tube：Ø20*2
Main Tube：Ø50*3.0t End Auxiliary Tube：50*25 Square tube deputy Tube：Ø32*2.0t Vice Tube：Ø25*2
CB300-3
Main Tube：Ø50*3.0t End Auxiliary Tube：50*25 Square tube deputy Tube：Ø25*2.0t Vice Tube：Ø20*2
Quantity:

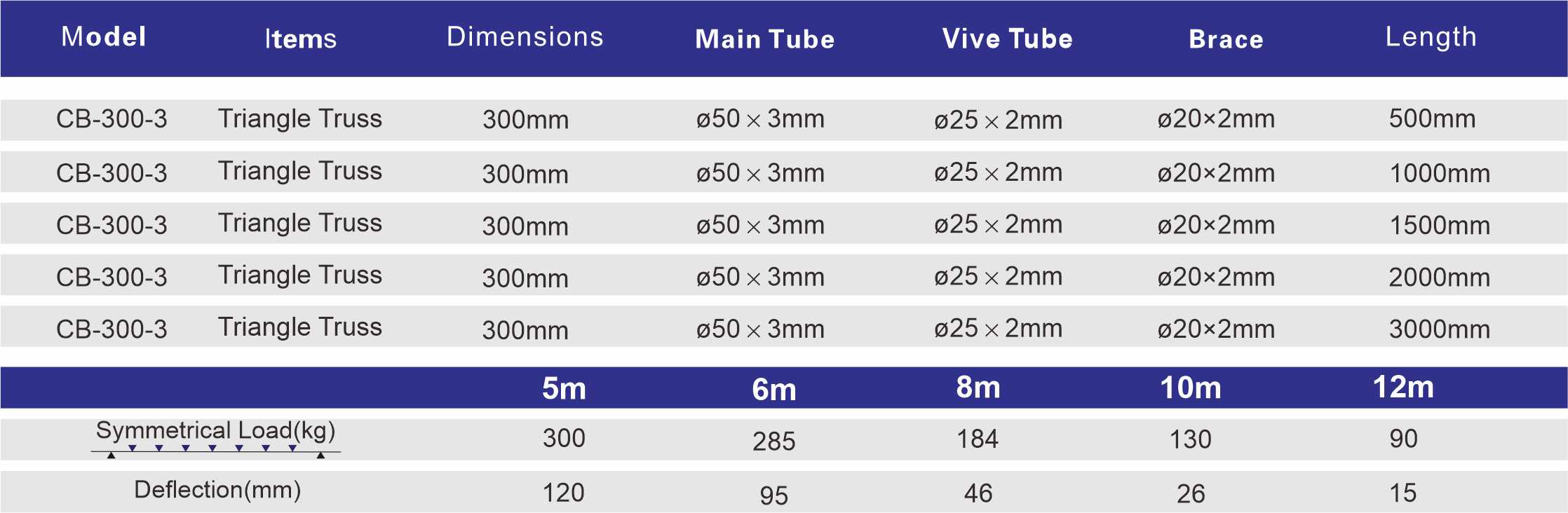

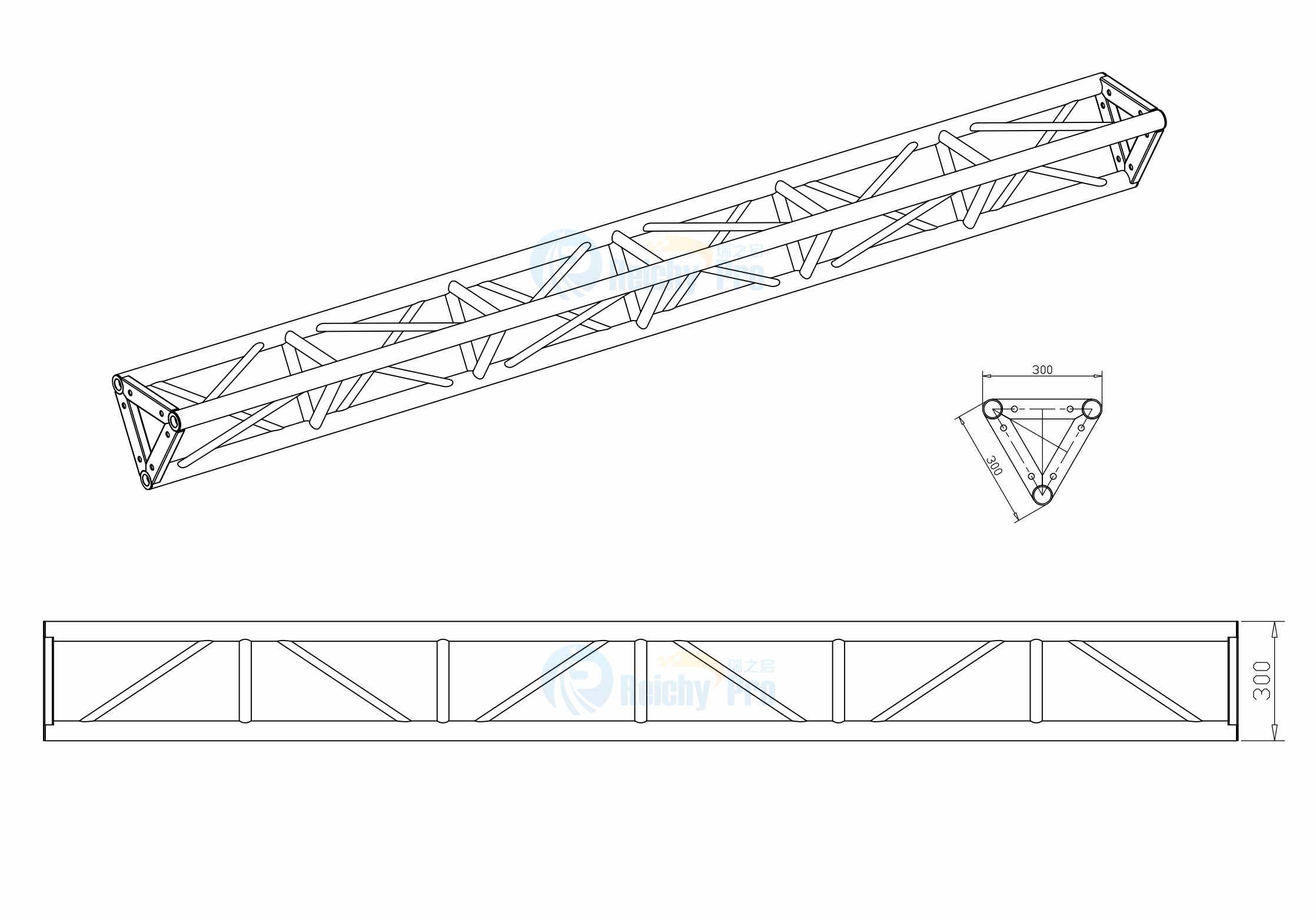

| CB300-3 Main Tube：Ø50*3.0t End Auxiliary Tube：50*25 Square tube deputy Tube：Ø25*2.0t Vice Tube：Ø20*2 | |||||||||
| Specification | |||||||||
| Size | 0.5m;1m;1.5m;2m;2.5m;3m | ||||||||
| Span（M） | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| CPL (KG) | 364 | 300 | 285 | 249 | 184 | 144 | 130 | 116 | 90 |
| UDL (KG/M) | 182 | 120 | 95 | 71 | 46 | 32 | 26 | 21 | 15 |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety. | |||||||||
screw truss,Square truss,Tradeshow truss
screw truss,Square truss,Tradeshow truss
screw truss,Square truss,Tradeshow truss

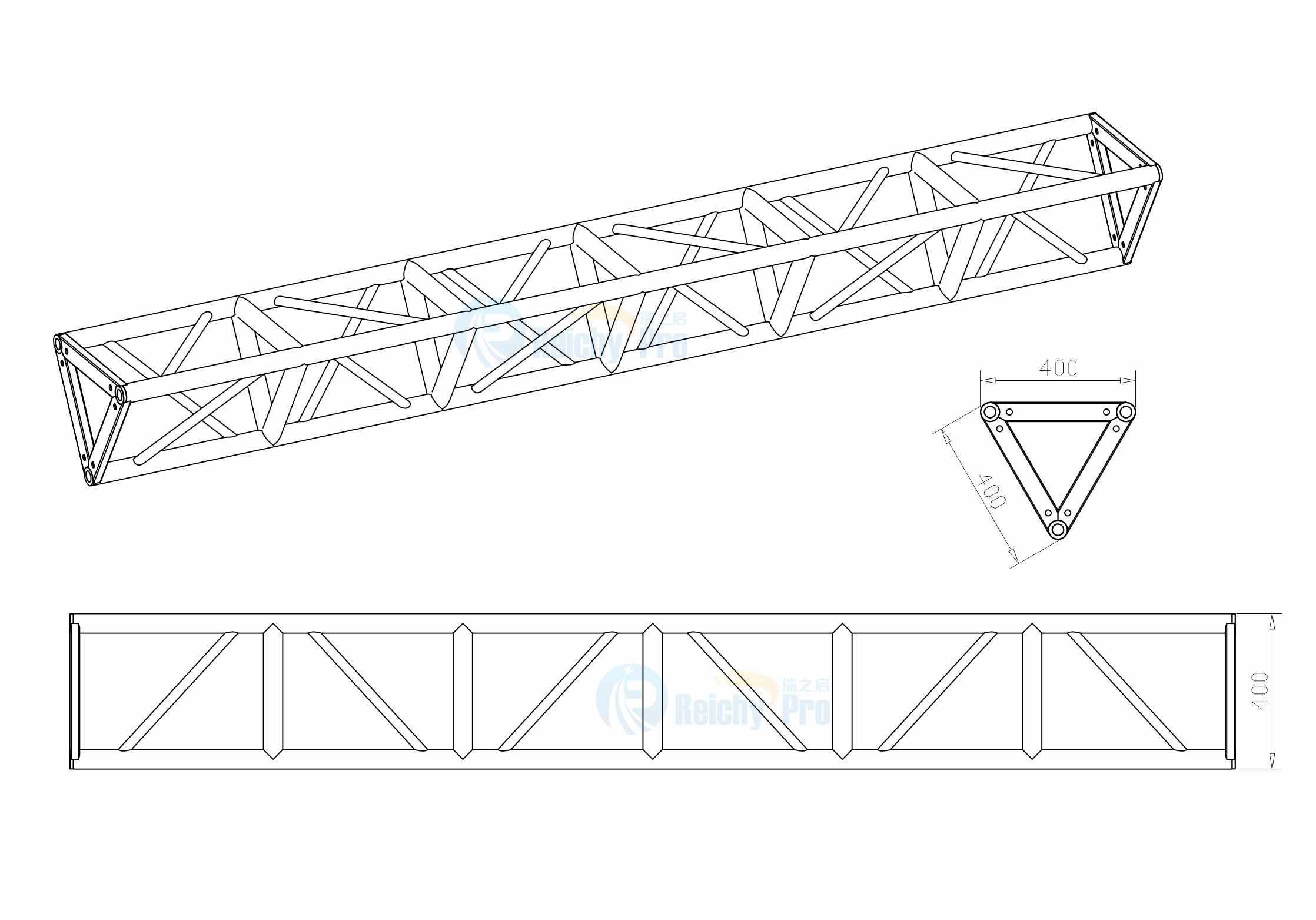

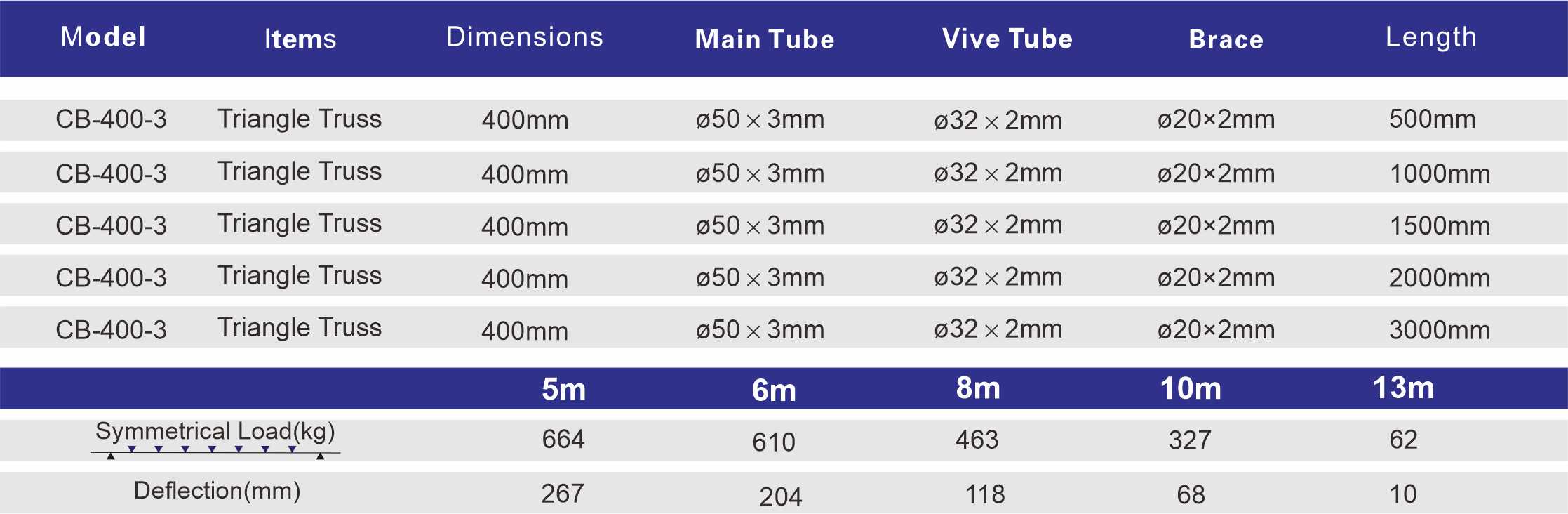

| CB400-3 Main Tube：Ø50*3.0t End Auxiliary Tube：50*25 Square tube deputy Tube：Ø32*2.0t Vice Tube：Ø25*2 | |||||||||
| Specification | |||||||||
| Size | 0.5m;1m;1.5m;2m;2.5m;3m | ||||||||
| Span（M） | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 13 |
| CPL (KG) | 720 | 664 | 610 | 540 | 463 | 399 | 327 | 272 | 62 |
| UDL (KG/M) | 361 | 267 | 204 | 157 | 118 | 89 | 68 | 51 | 10 |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety. | |||||||||
screw truss,Square truss,Tradeshow truss
When it comes to creating a sturdy and reliable setup for your tradeshow displays, screw truss and square truss are essential components.
These versatile trussing systemsprovide the support and stability needed to showcase your products and attract attention from visitors.
Whether you're setting up a small exhibit or a large-scale display,tradeshow truss is the perfect solution to ensure your presentation
stands out and leaves a lasting impression. Choose screw truss and square truss for a professionaland eye-catching tradeshow experience.
