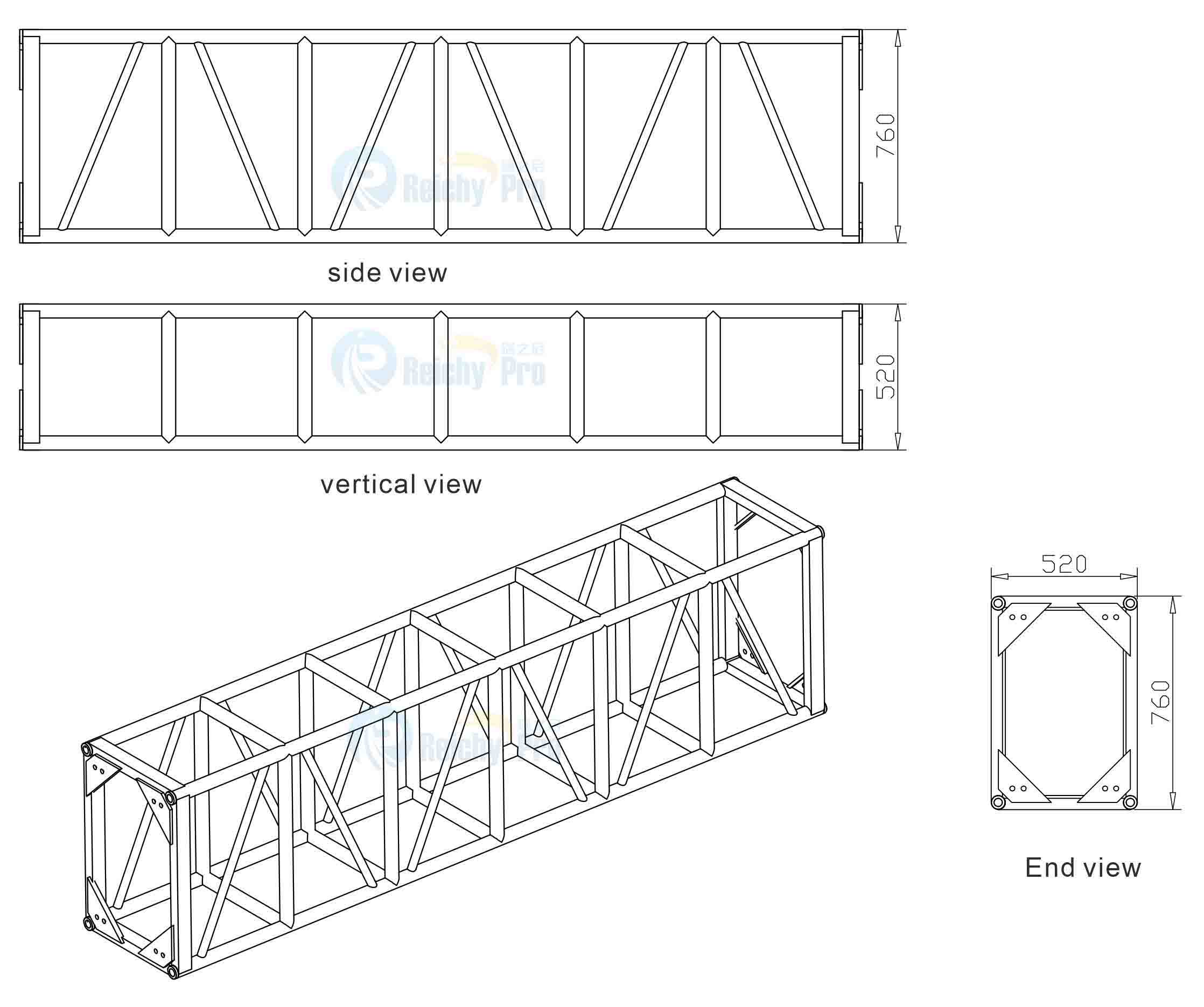

Screw type square truss 5276



Square truss,screw truss,Truss SGS

CB5276 Main Tube：Ø50*3.0mm     Vice Tube：Ø50*2.0mm     Brace Tube：Ø30*2.0mm

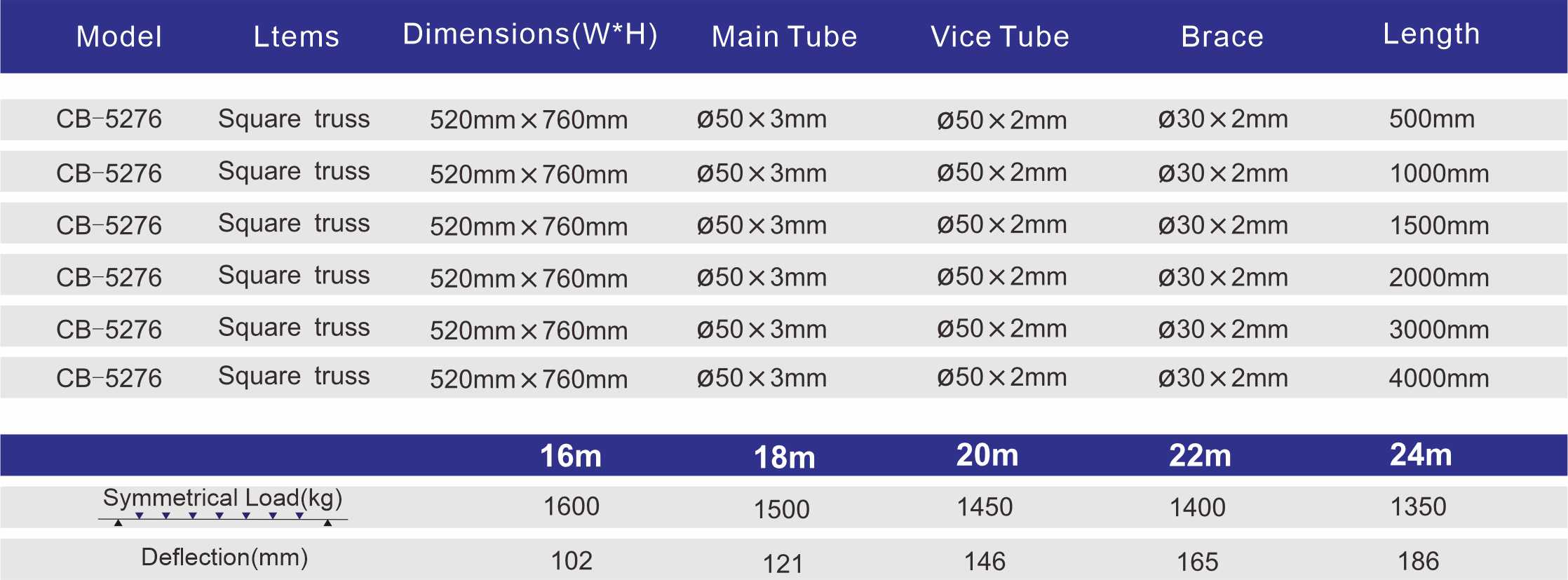

Specification
Size		0.5m;1m;1.5m;2m;2.5m;3m;3.5m;4m
Span (M)		8	10	12	14	16	18	20	22	24
CPL (KG)		2128	1899	1577	1286	992	866	816	653	589
UDL (KG/M)		332	216	155	106	83	64	45	34	29
Deflection (mm)		-	-	-	-	102	121	146	165	178
1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety.







Square truss,screw truss,Truss SGS                                                                                                                                                                 Square truss,screw truss,Truss SGS





The construction industry often encounters various types of trusses, each designed for specific purposes and structural requirements. Square trusses, known for their robust

and squared-off appearance, provide excellent support for heavy loads. Meanwhile, screw trusses utilize screws for assembly, offering ease of installation and versatility.

Truss SGS, a specialized system, ensures superior strength and stability, making it a preferred choice for demanding projects. Understanding the distinct advantages of

these truss types is crucial for efficient and effective construction planning.
