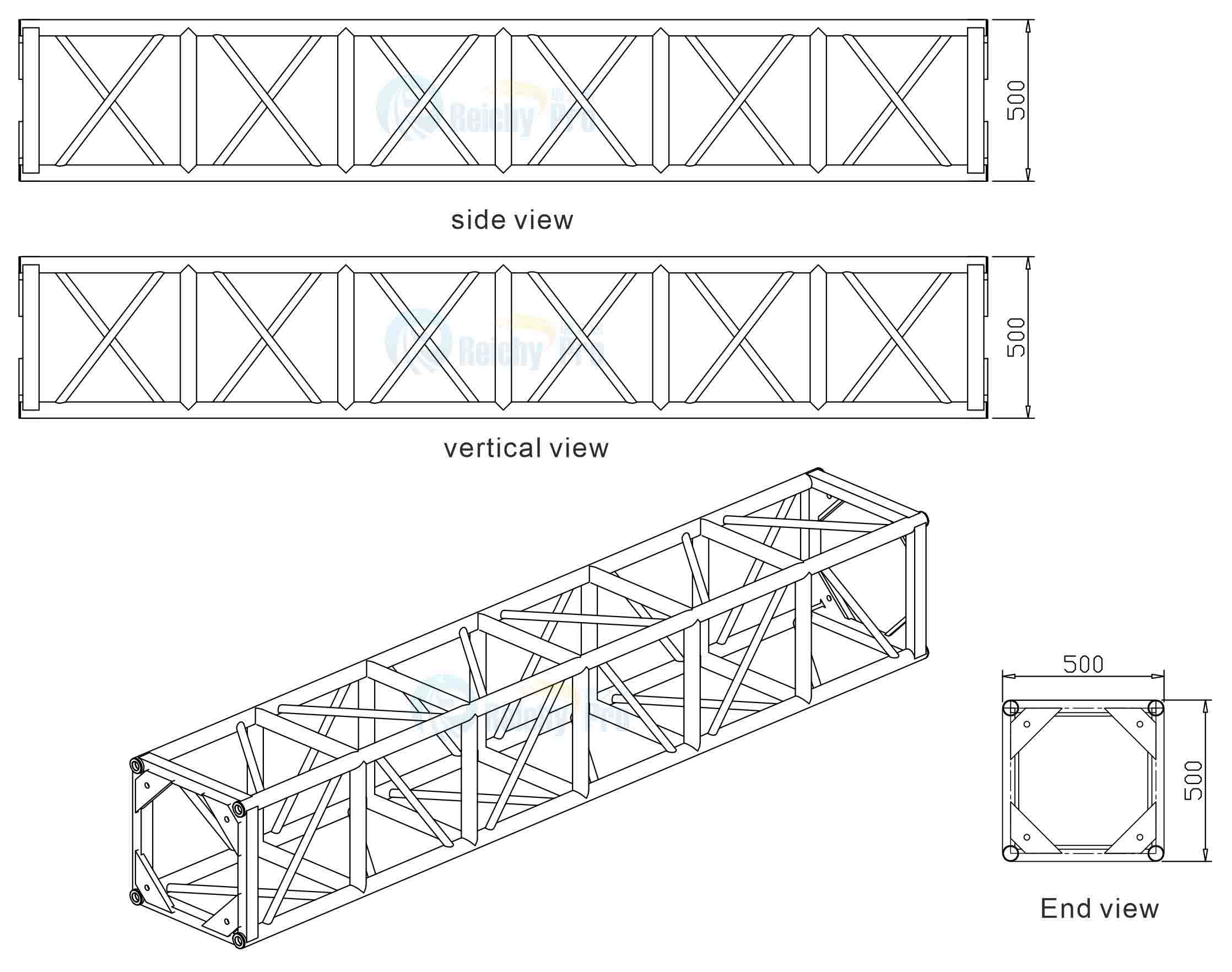

Screw type square truss 500
CB500-4
Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm
Quantity:
| CB500 Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm | ||||||||||

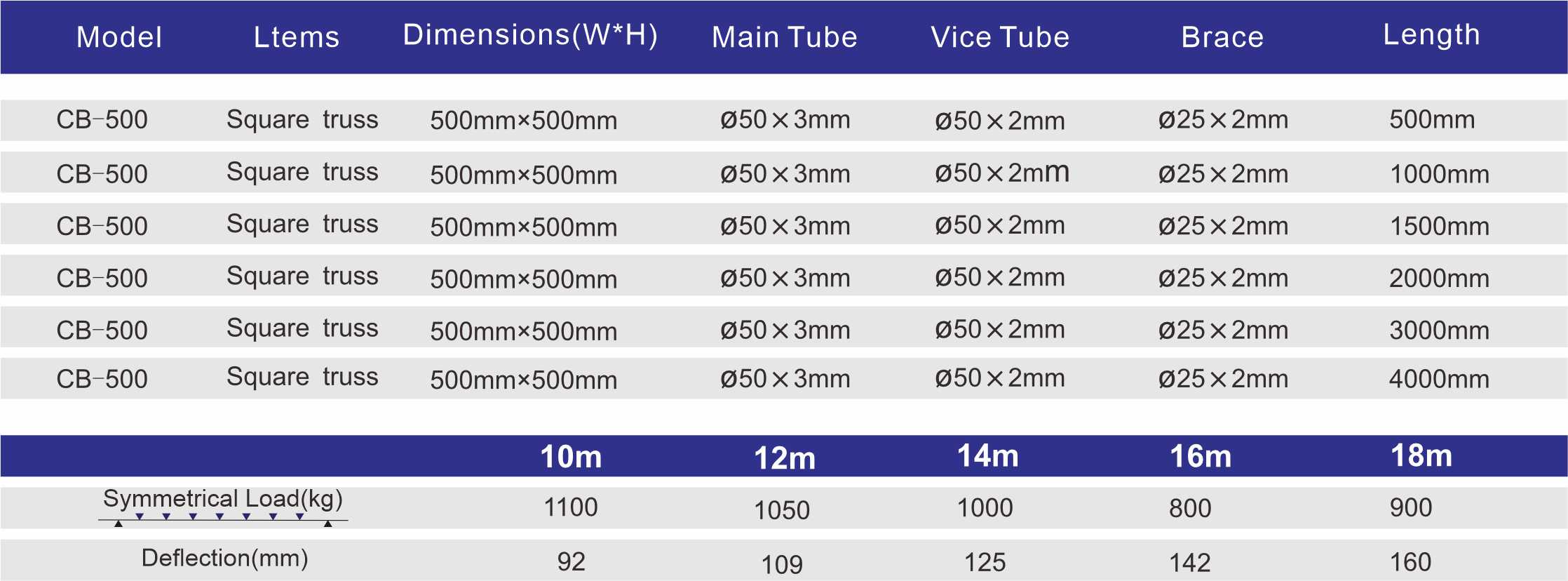

| Specification | ||||||||||
| Size | 0.5m;1m;1.5m;2m;2.5m;3m;3.5m;4m | |||||||||
| Span (M) | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 16 | |
| CPL (KG) | 1277 | 1121 | 1019 | 943 | 914 | 876 | 823 | 634 | 472 | |
| UDL (KG/M) | 393 | 305 | 247 | 188 | 127 | 92 | 73 | 52 | 32 | |
| Deflection (mm) | - | - | - | - | - | 92 | 109 | 125 | 137 | |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety. | ||||||||||
Screw Truss, Global Truss, and Ladder Truss are three innovative solutions that have revolutionized the construction and mounting industry. Screw Truss, known for its
easy installation and robust design, offers exceptional stability for various applications. Global Truss, with its versatile and customizable options, caters to international
project demands. And Ladder Truss, designed for efficient space utilization, provides a sturdy platform for diverse installations. Together, Screw Truss, Global Truss,
and Ladder Truss offer a comprehensive range of solutions to tackle any construction or mounting challenge, ensuring optimal performance and reliability.
