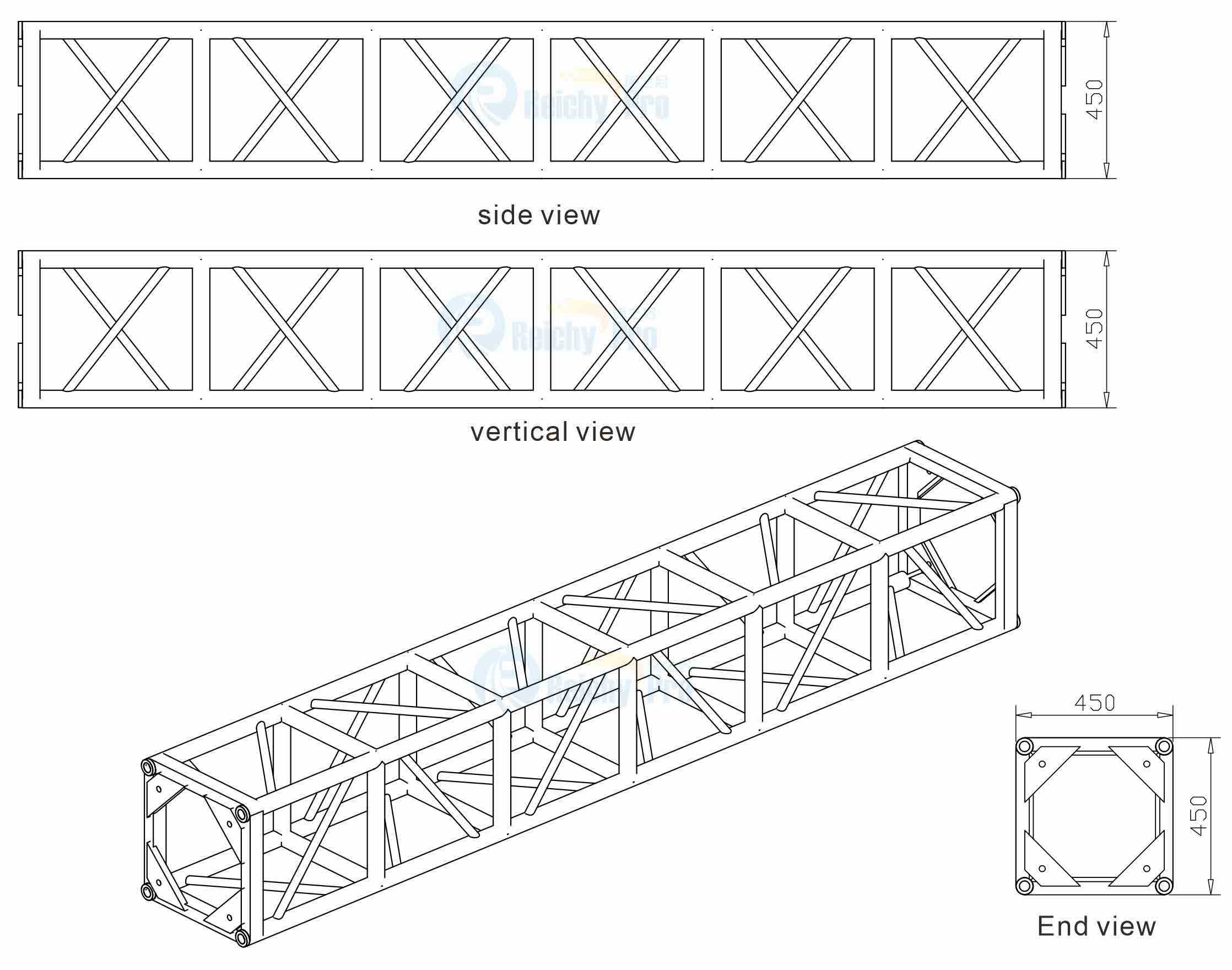

Screw type square truss 450
CB450-4
Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm
Quantity:
screw truss ,high capacity truss ,middle beam truss

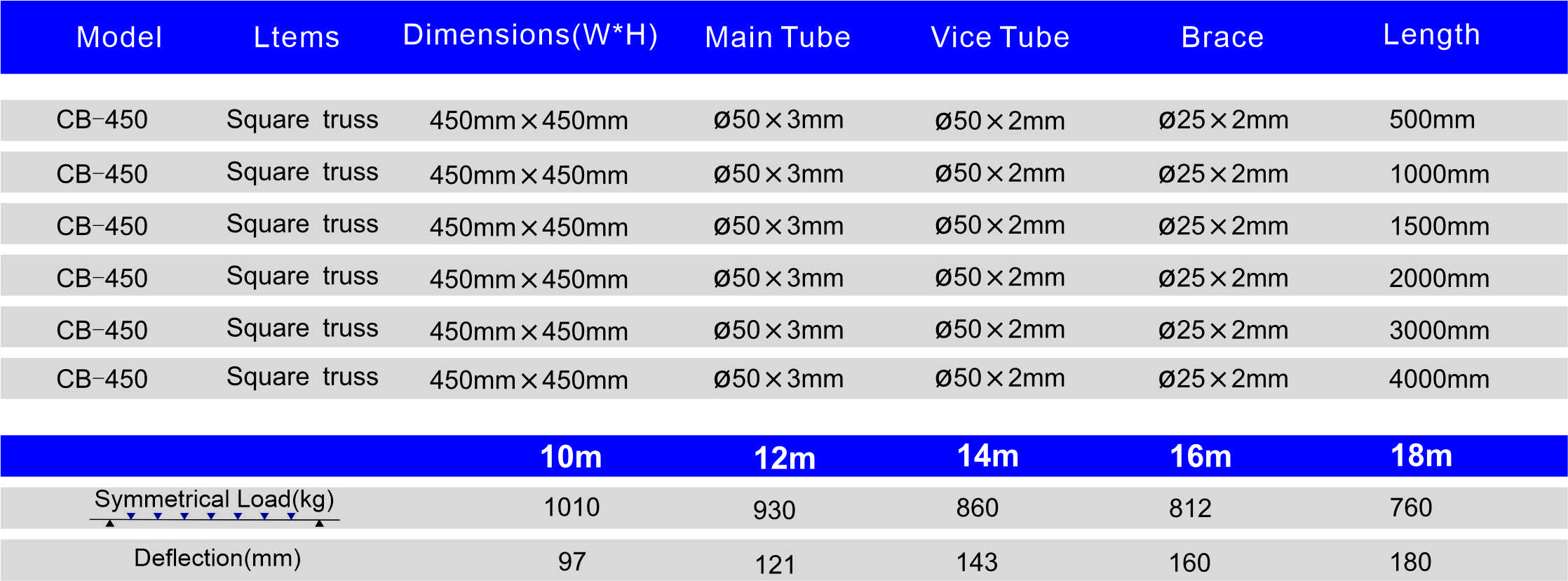

| CB450 Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm | ||||||||||
| Specification | ||||||||||
| Size | 0.5m;1m;1.5m;2m;2.5m;3m;3.5m;4m | |||||||||
| Span (M) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15 | |
| CPL (KG) | 612 | 589 | 548 | 522 | 495 | 443 | 426 | 380 | 313 | |
| UDL (KG/M) | 498 | 381 | 299 | 244 | 177 | 117 | 85 | 62 | 38 | |
| Deflection (mm) | - | - | - | - | 12 | - | 31 | 49 | 65 | |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety. | ||||||||||
screw truss ,high capacity truss ,middle beam truss
Screw trusses, high capacity trusses, and middle beam trusses are integral components in structural engineering, each serving unique purposes. Screw trusses, known for their ease of installation, provide stability and support in various constructions. High capacity trusses, on the other hand, are designed to bear significant loads, making them ideal for large-scale projects. Middle beam trusses, as the name suggests, act as intermediary supports, enhancing the overall structural integrity. Together, these truss types contribute to the creation of robust and durable constructions.
