Screw type square truss 5060



screw truss,trussing for led screen,TUV truss

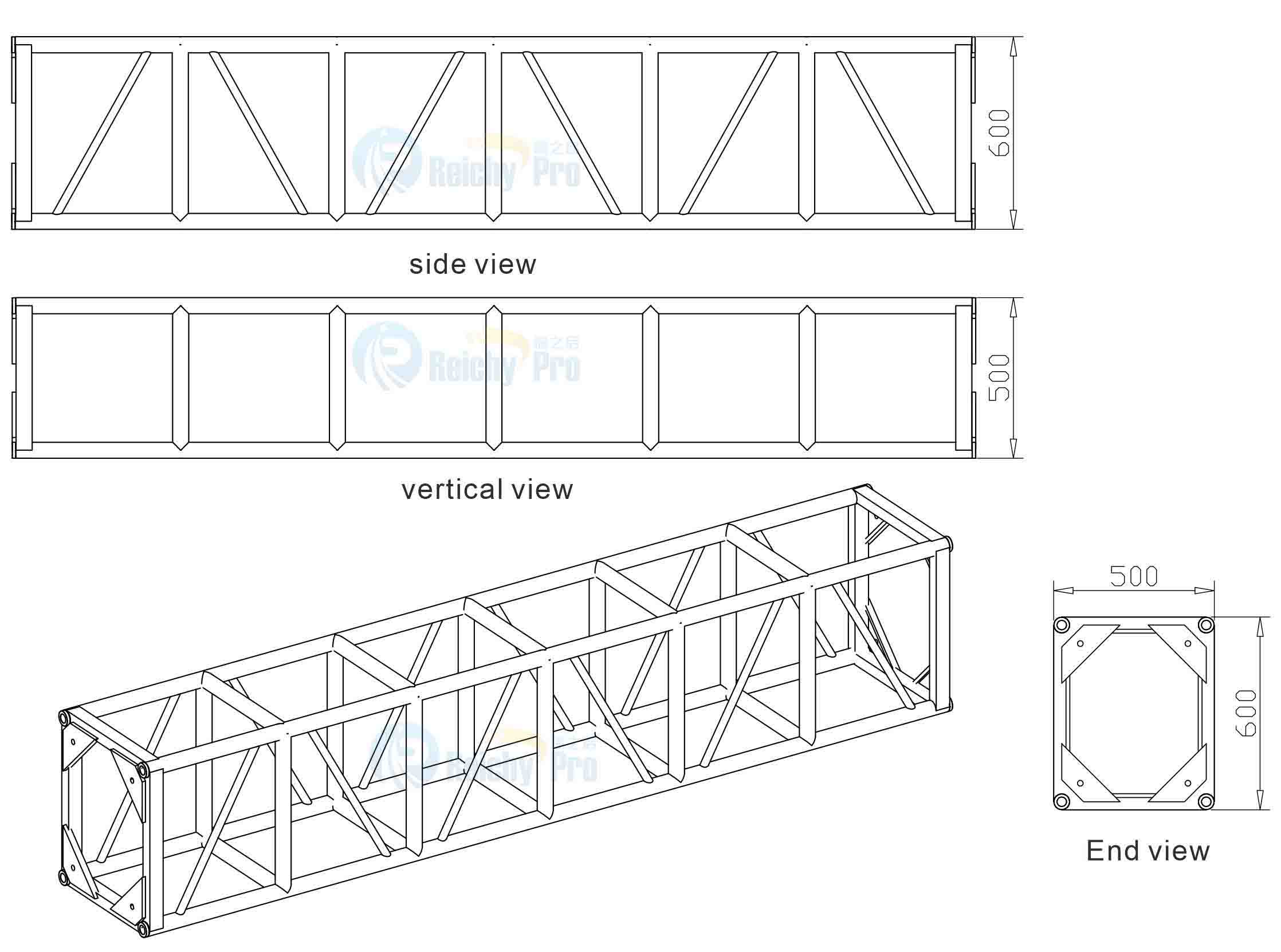

CB5060 Main Tube：Ø50*3.0mm   Vice Tube：Ø50*2.0mm    Brace Tube：Ø25*2.0mm

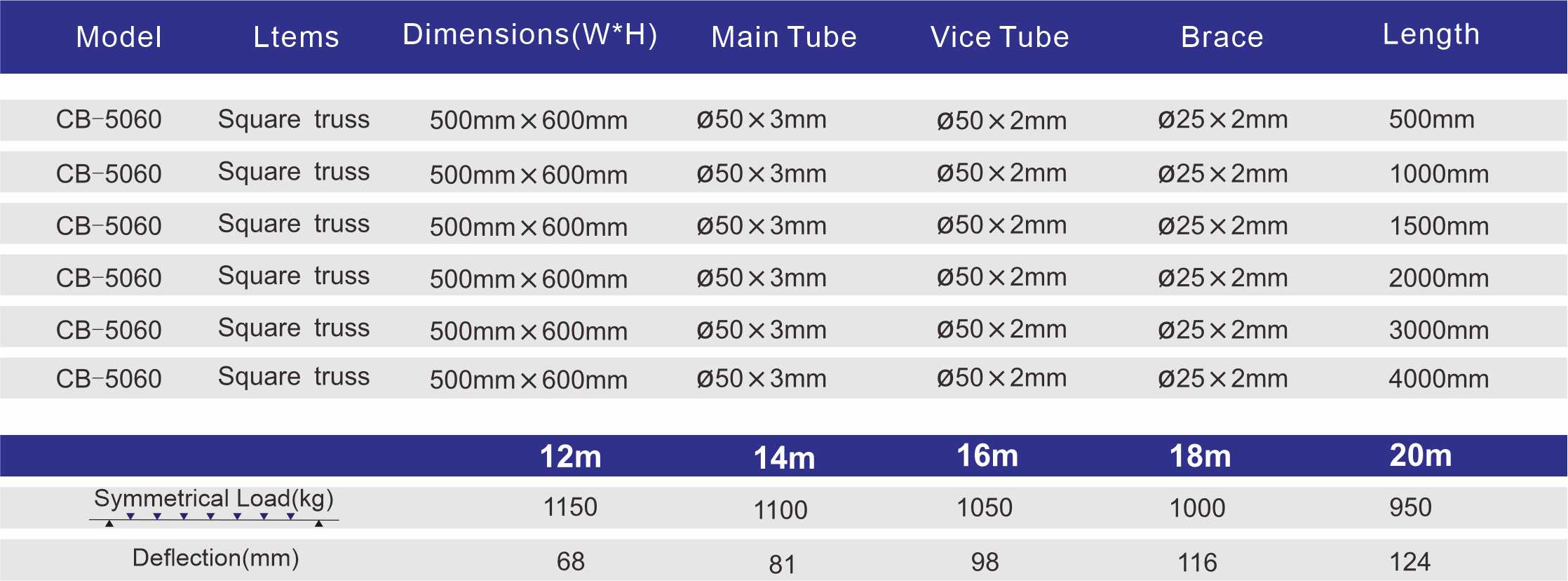

Specification
Size		0.5m;1m;1.5m;2m;2.5m;3m;3.5m;4m
Span (M)		7	8	9	10	12	14	16	18	20
CPL (KG)		1543	1491	1363	1226	1092	891	763	592	476
UDL (KG/M)		346	298	285	238	172	117	78	53	34
Deflection (mm)		-	-	-	-	87	106	120	136	150
1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety.







                                                    screw truss,trussing for led screen,TUV truss                                                                                  screw truss,trussing for led screen,TUV truss





 Screw Truss, a versatile and easy-to-install solution, has revolutionized the way we approach construction and mounting systems. Its unique design, particularly suited for

trussing for LED screens, ensures stability and optimal display performance. When combined with TUV Truss, known for its superior strength and durability, it creates an

unbeatable combination for demanding visual setups. Explore the potential of Screw Truss and TUV Truss in transforming your LED screen installations into visually

stunning and structurally sound displays.   screw truss,trussing for led screen,TUV truss
