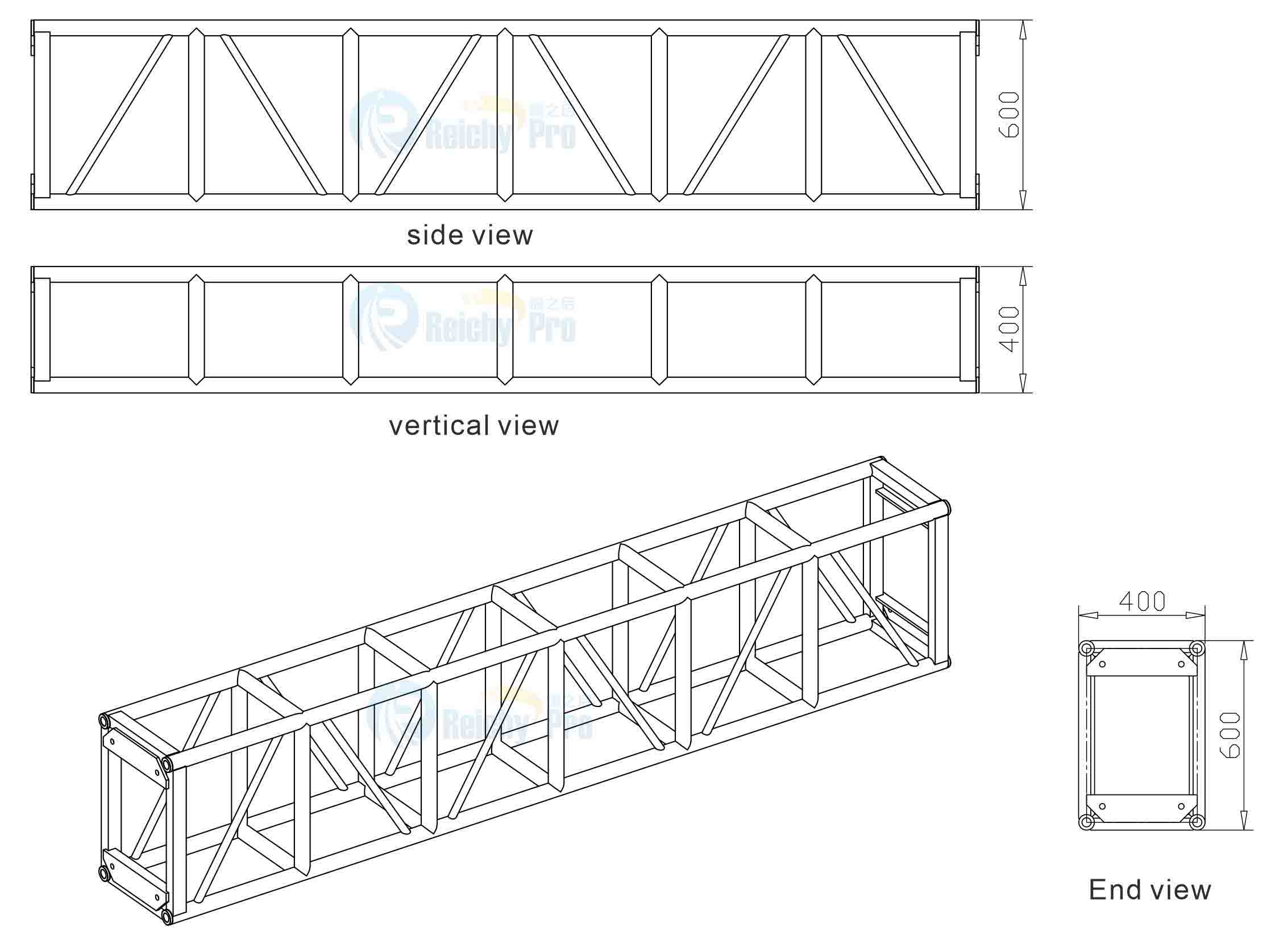

Screw type square truss 4060
CB4060-4
Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm
Quantity:
Square truss,customized truss,Truss TUV
| CB4060 Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm | ||||||||||
| Specification | ||||||||||
| Size | 0.5m;1m;1.5m;2m;2.5m;3m;3.5m;4m | |||||||||
| Span (M) | 6 | 7 | 8 | 9 | 10 | 12 | 14 | 16 | 18 | |
| CPL (KG) | 944 | 910 | 874 | 821 | 790 | 631 | 470 | 386 | 292 | |
| UDL (KG/M) | 287 | 234 | 210 | 187 | 153 | 101 | 64 | 47 | 36 | |
| Deflection (mm) | - | - | - | - | 60 | 72 | 98 | 108 | 116 | |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety. | ||||||||||
Square truss,customized truss,Truss TUV Square truss,customized truss,Truss TUV
Square Truss, known for its robust design and versatility, has become a staple in various construction and mounting applications. Its unique square shape provides
exceptional stability and load-bearing capabilities. When combined with the advantages of customized truss solutions, it offers tailored support for specific project
requirements. And when it comes to superior strength and durability, Truss TUV stands out as the ultimate choice. Together, Square Truss, customized truss,
and Truss TUV create a formidable combination for demanding construction and mounting challenges. Discover the potential of these innovative solutions
in transforming your projects. Square truss,customized truss,Truss TUV
