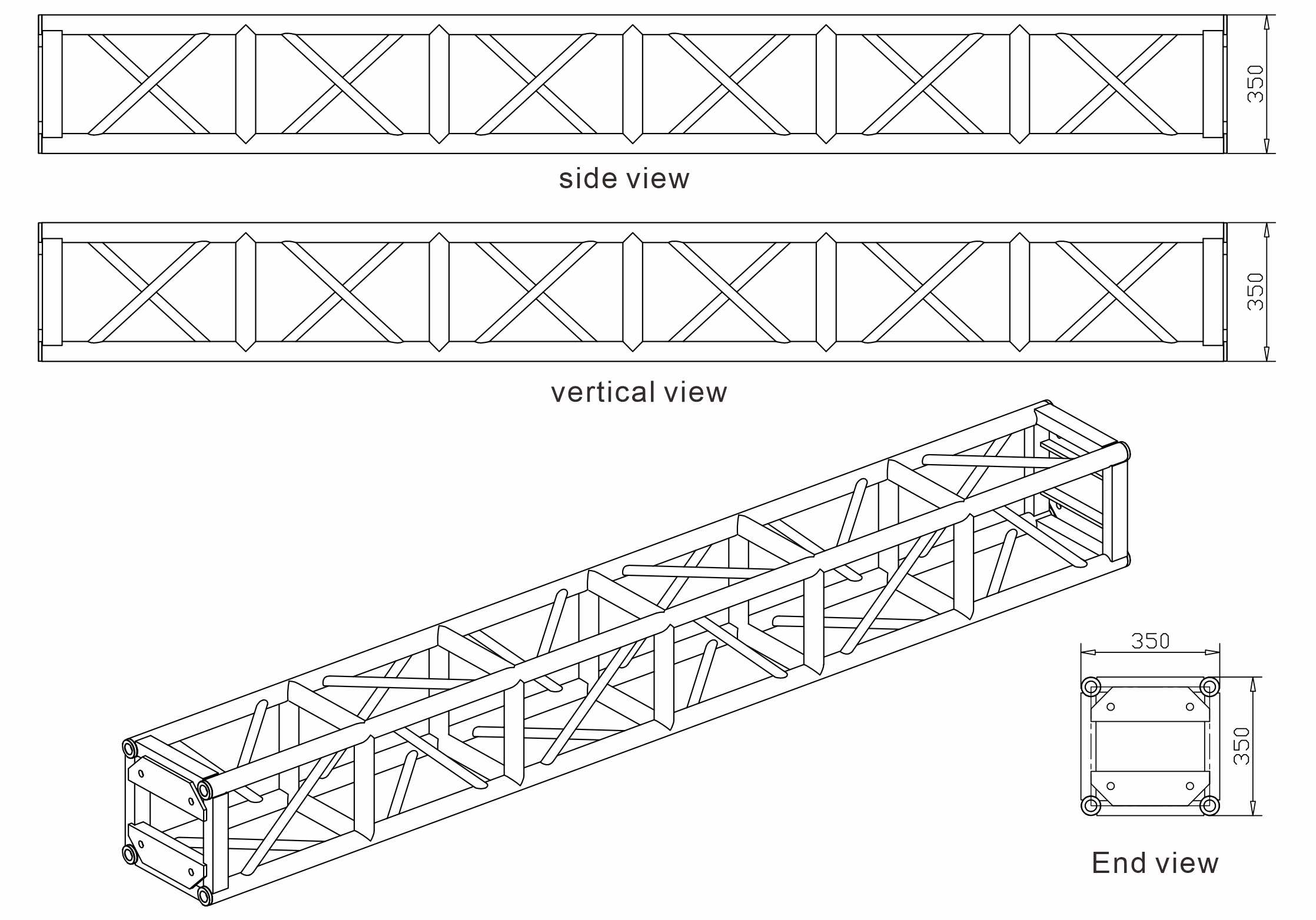

Screw type square truss 350
CB350-4
Main Tube：Ø50*3.0mm Vice Tube：Ø25*2.0mm Brace Tube：Ø25*2.0mm
Quantity:
trussing roofs,Truss CE

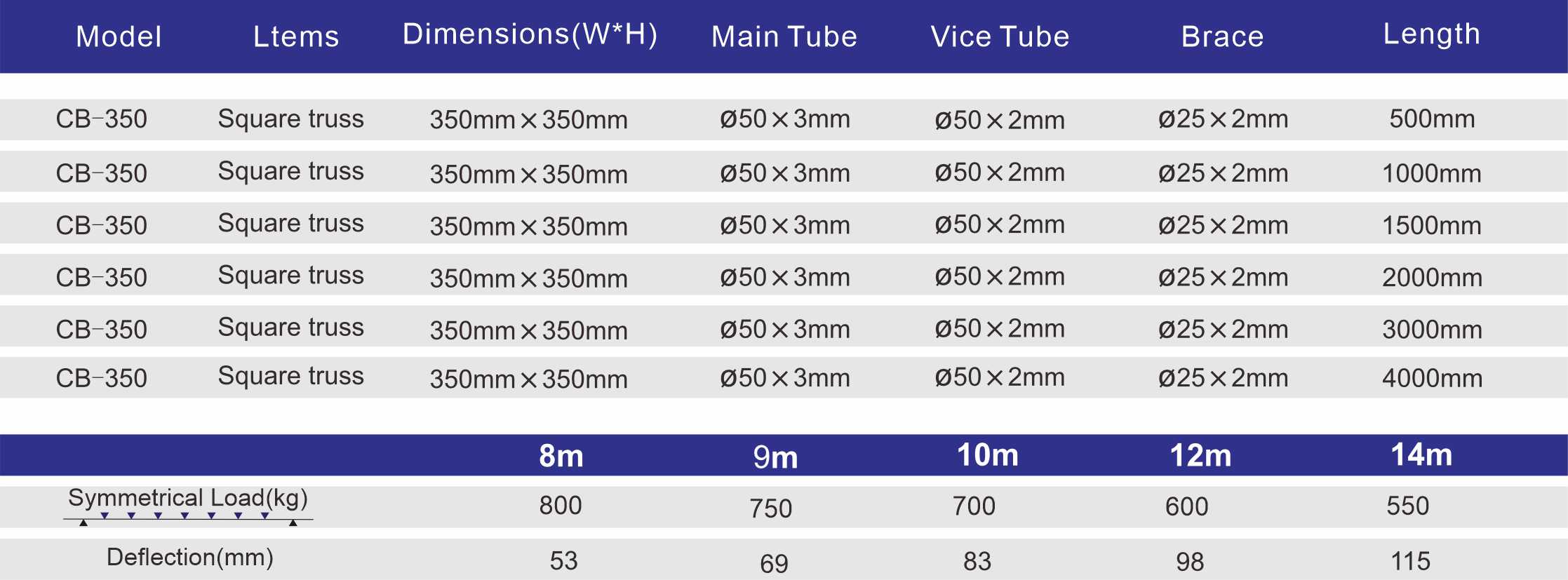

| CB350 Main Tube：Ø50*3.0mm Vice Tube：Ø25*2.0mm Brace Tube：Ø25*2.0mm | ||||||||||
| Specification | ||||||||||
| Size | 0.5m;1m;1.5m;2m;2.5m;3m;3.5m;4m | |||||||||
| Span (M) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | |
| CPL (KG) | 602 | 443 | 478 | 434 | 394 | 355 | 327 | 300 | 264 | |
| UDL (KG/M) | 472 | 323 | 208 | 159 | 99 | 85 | 60 | 48 | 32 | |
| Deflection (mm) | - | - | - | - | - | 53 | 69 | 83 | 98 | |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety. | ||||||||||
trussing roofs,Truss CE
When it comes to constructing robust and reliable roofs, screw truss is a top choice for its durability and strength. Trussing roofs require precision and attention to detail,
and screw truss provides the perfect solution. With Truss CE certification, you can trust that our screw truss meets the highest standards of quality and safety.
Choose screw truss for your roofing projects and enjoy peace of mind knowing that your structure is built to last.
