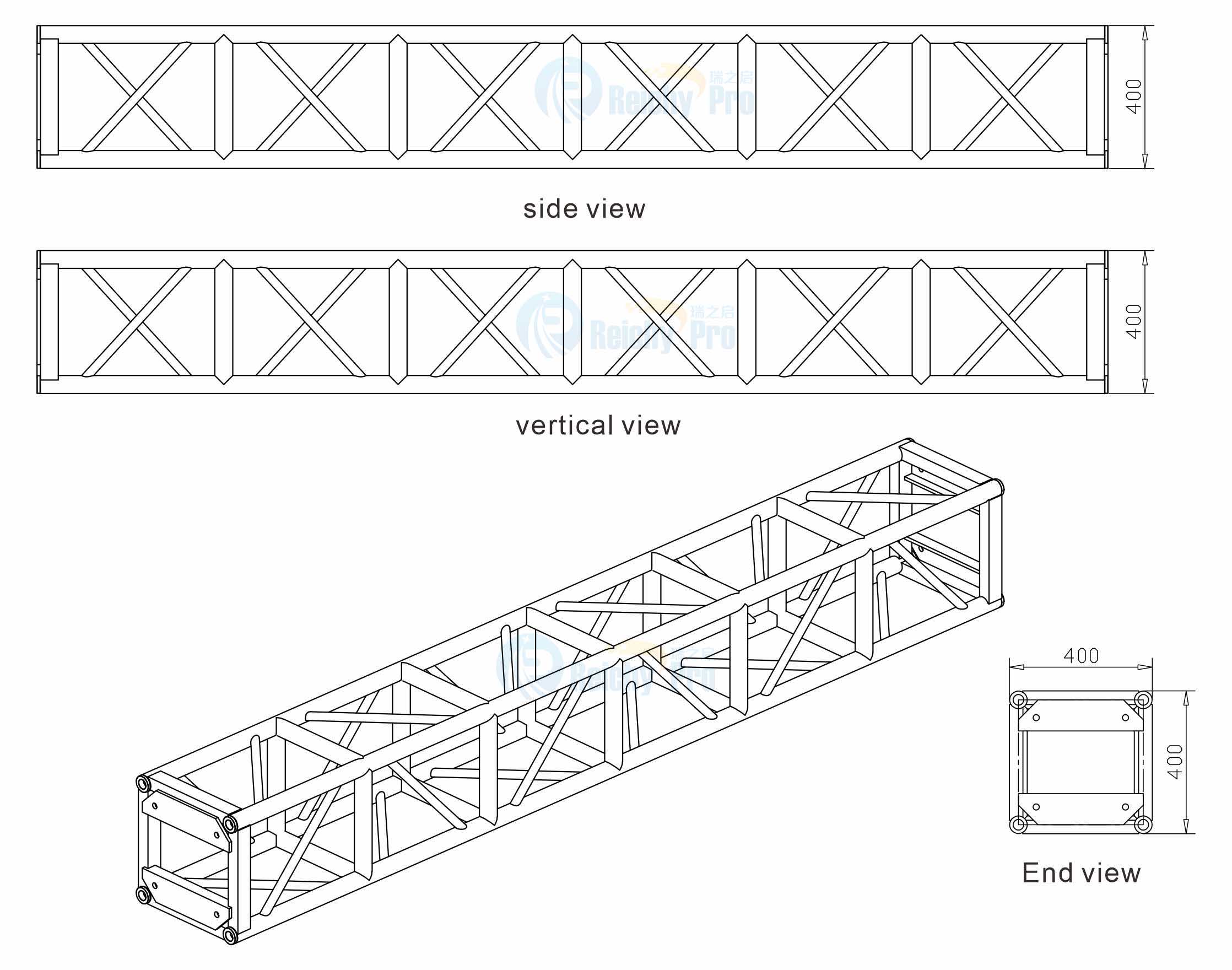

Screw type square truss 400
CB400-4
Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm
Quantity:
screw truss,Square truss,400mm truss

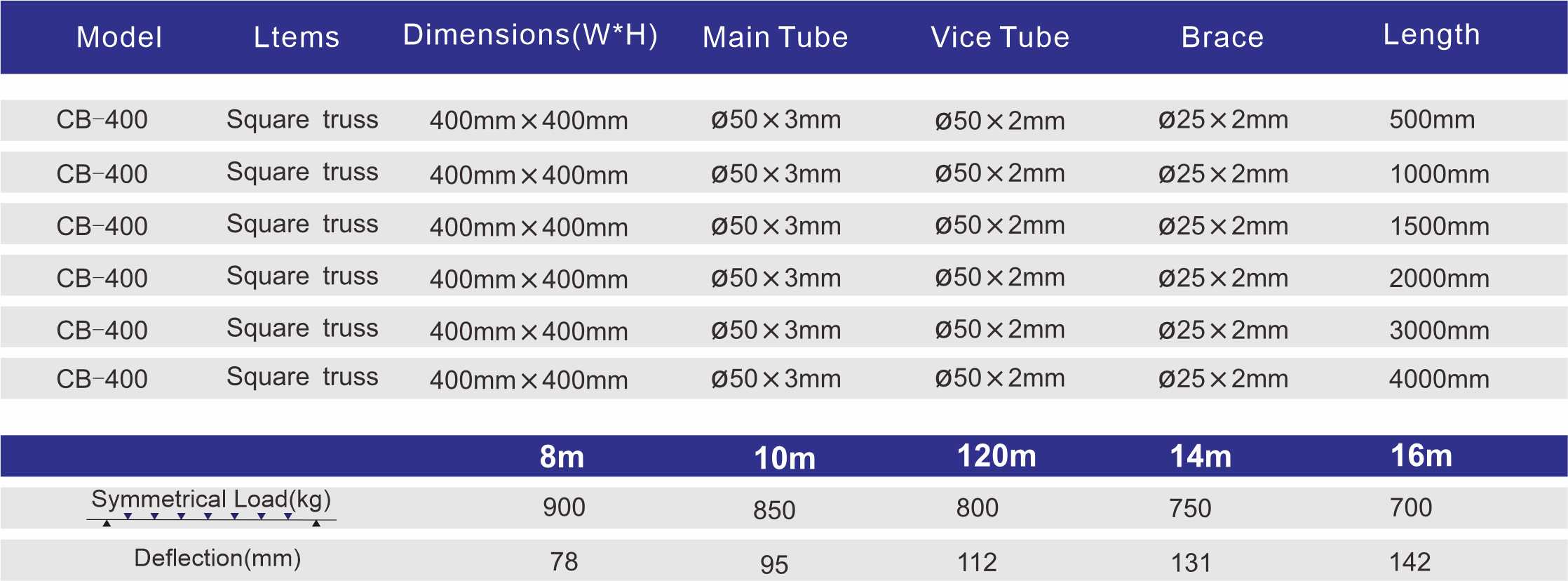

| CB400 Main Tube：Ø50*3.0mm Vice Tube：Ø50*2.0mm Brace Tube：Ø25*2.0mm | ||||||||||
| Specification | ||||||||||
| Size | 0.5m;1m;1.5m;2m;2.5m;3m;3.5m;4m | |||||||||
| Span (M) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 | |
| CPL (KG) | 525 | 479 | 429 | 391 | 354 | 333 | 301 | 276 | 287 | |
| UDL (KG/M) | 412 | 318 | 217 | 158 | 106 | 85 | 61 | 43 | 38 | |
| Deflection (mm) | - | - | - | - | 78 | - | 93 | - | 131 | |
| 1. Material: International Industrial Aluminum 6082-T6 2. Aluminum Tube Features: Elongation > 8, Yield Strength > 260, Tensile Strength >310 3. Products are globally underwritten by insurance companies to ensure quality and load safety. | ||||||||||
screw truss,Square truss,400mm truss
When it comes to structural engineering and construction, understanding the various types of trusses is crucial. One common type is the screw truss, which utilizes screws for
connection, providing a sturdy and secure framework. Another variant is the square truss, known for its square-shaped design that offers even distribution of weight. Lastly,
the 400mm truss, named for its dimensions, is often used in specific applications requiring a precise size. Each type of truss serves a unique purpose, contributing to
the overall stability and integrity of a structure. screw truss,Square truss,400mm truss
